Characterization
☆☆ Design the measurement range : 2 ~ 300 mm
☆☆ 2 ~ 6 mm Adopt two-point design / 0.001 mm
☆☆ 6 ~ 300 mm Adopt three-point design/0.005 mm
☆☆Extension bar specifications face contact

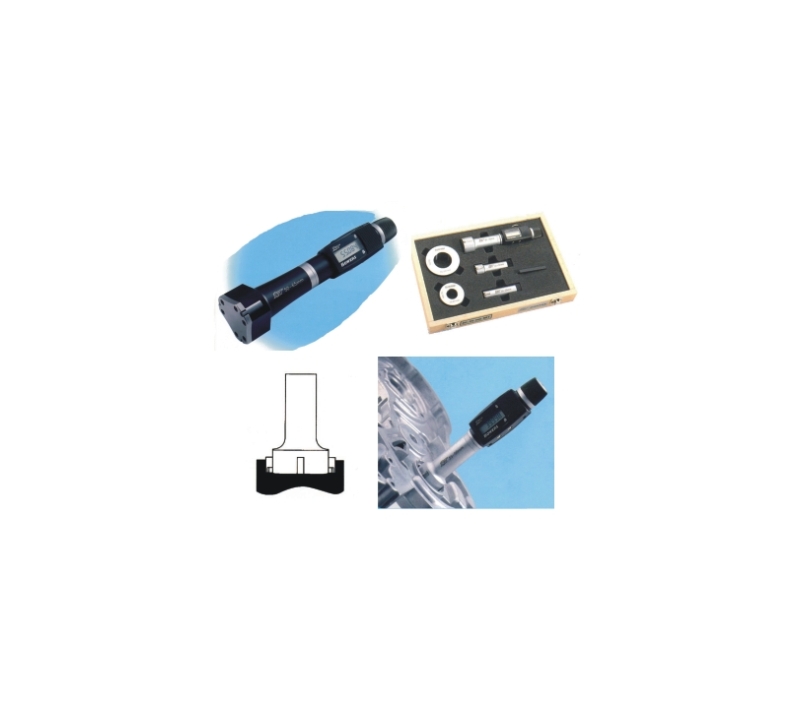

Electronic
☆☆ Design the measurement range:2 ~ 300 mm；
☆☆ 2 ~ 6 mm mining two-point design / 0.001 mm
☆☆ 6 ~ 300 mm mining three-point design /
0.001 mm ； ☆☆ RS-232C Interface output

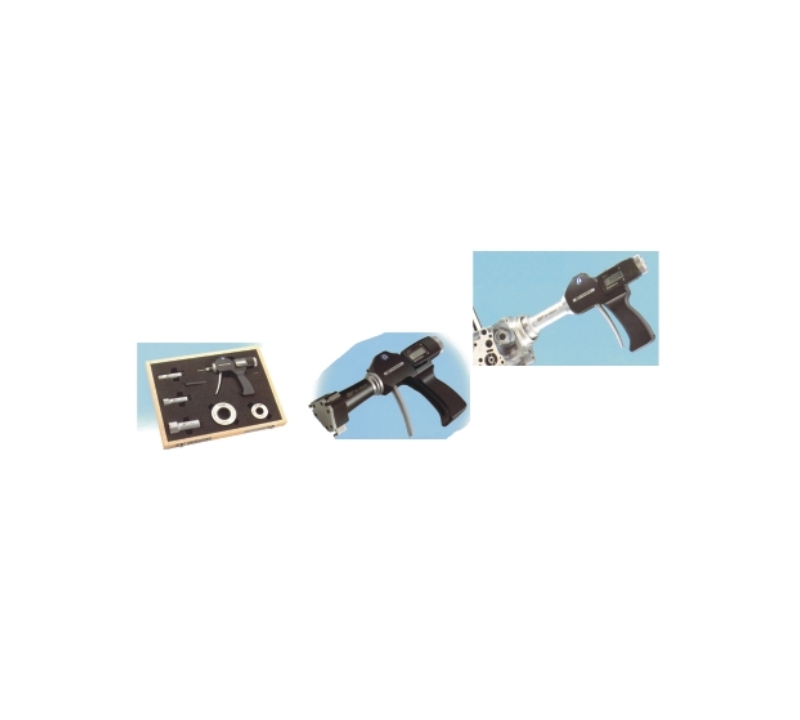

Electronic gun type
concept of design : Fast. High precision.
Constant pressure
measurement use
Related specifications:
ibid
Item number : Change SXTD1M to SXTH1M
Characterization
|
Numbering
|
specification
|
Content (unit: mm)
|
|
SXTA1M
|
2-3mm
|
2-2.5/2.5-3.0
|
|
SXTA2M
|
3-6mm
|
3-4/4-5/5-6
|
|
SXTA3M
|
6-10mm
|
6-8/8-10
|
|
SXTA4M
|
10-20mm
|
10-12.5/12.5-16
16-20
|
|
SXTA5M
|
20-50mm
|
20-25/25-35
35-50
|
|
SXTA6M
|
50-100mm
|
50-65/65-80
80-100
|
|
SXTA7M
|
100-150mm
|
100-125/125-150
|
|
SXTA8M
|
150-200mm
|
150-175/175-200
|
Electronic
|
Numbering
|
specification
|
Content (unit: mm)
|
|
SXTD1M
|
2-6mm
|
2-2.5/2.5-3.0
3-4/4-5/5-6
|
|
SXTD3M
|
6-10mm
|
6-8/8-10
|
|
SXTD4M
|
10-20mm
|
10-12.5/12.5-16
16-20
|
|
SXTD5M
|
20-50mm
|
20-25/25-35
35-50
|
|
SXTD6M
|
50-100mm
|
50-65/65-80
80-100
|
|
SXTD7M
|
100-150mm
|
100-125/125-150
|
|
SXTD8M
|
150-200mm
|
150-175/175-200
|
