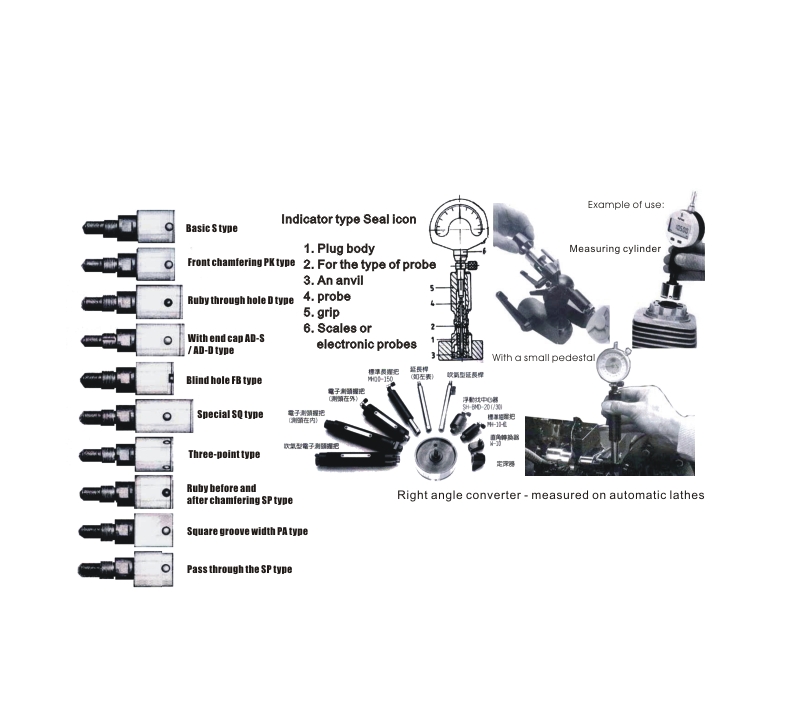

Germany DIATEST indicator plug

Features : Can solve the industry most of the aperture

measurement problem; not only a variety of standard

plug head and according to customer needs to provide

special size.

☆☆General air gauge in a very harsh environment to be

      blown away before the diameter can be properly

      measured size.

☆☆  Optional display type, comparison type, electronic

        scale, electronic probe plus high-precision display,

        and then connect the microcomputer data collection

        and statistical analysis purposes.

☆☆specifications

Seal accuracy ---≦0.4 um；Repeat accuracy ---

                           ≦1 um (Two-point style)；

                           ≦2 um (Three-point style)

Linear precision --- ≦ 1% (two-point); ≦ 3% (three-point).

Optional precautions

To determine the pore sizeψ62.60+0.02/-0.00 mm ;

Order:S10-62.6

 * ψ62.60 The lower limit of the aperture is

    the minimum diameter

 * The diameter of the plug head is the minimum

    diameter of -0.02 to -0.04 mm.

* It is recommended to set the ring gauge with the

   lower limit of the aperture. It is best to know the

   absolute value of the ring gauge.
