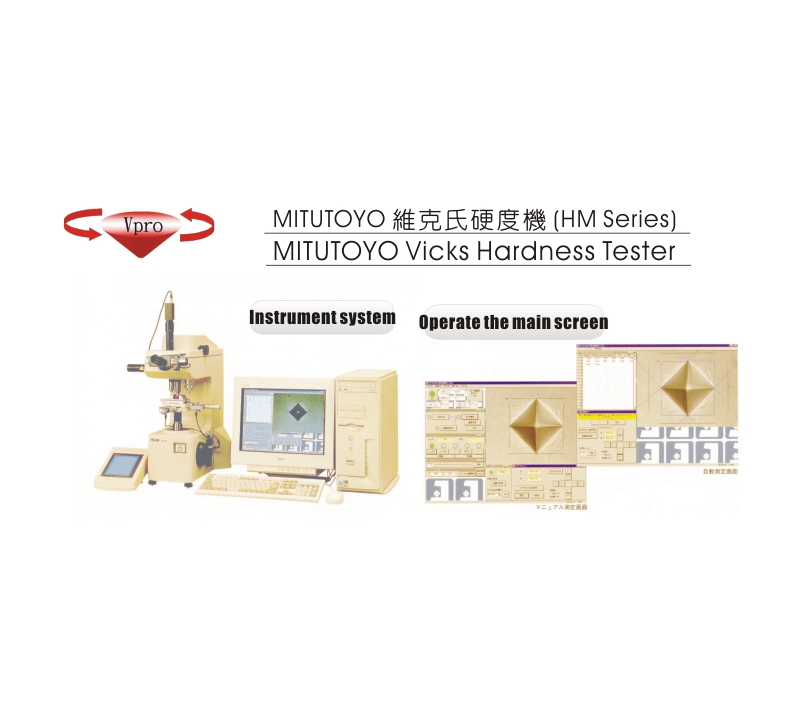

Instrument characteristics
Any type of Vickers, micro-dimensional grams can be installed
to the computer to extract diamond-shaped indentation images,
automatic determination of Hv value, reduce the human visual
error; to enhance the accuracy, reliability, high efficiency, speed,
RBI, automatic Test, print, at one go.
|
Specifications
|
HM-101
|
HM-112
|
HM-113
|
|
Test load
|
10、25、50、100、200、300、500、1000gf
|
||
|
Load action
|
Automatic mode (load、maintain、In addition to the load)
|
||
|
Measurement method
|
Visual . Scale
|
Visual . digital
|
Screen . digital
|
|
Load hold time
|
5~30 second
|
5~99 second Any setting
|
|
|
Sample size
|
high 95 m/m x deep 150 m/m
|
||
|
Light path
|
Measurement / photography switching
|
||
|
On the objective lens
|
10 Times to observe ；50 Times measured with
|
||
|
Minimal representation
|
0.2 um
|
0.1 um
|
|
|
Maximum length measurement
|
140 um
|
||
|
Table top / moving range
|
100 x 100 mm / 25 x 25 mm
|
||
|
Measurement method
|
Visual inspection (10um)
|
||
|
Data processing functions
|
--
|
LEDSaid
|
|
|
Output
|
SPC Output；RS-232 Output
|
||
|
Instrument appearance
|
410 x 600 x 590 mm
|
||
|
Instrument weight
|
42 Kg
|
||
|
using electric
|
AC 100 ± 10 %；50 / 60 Hz；60 VA or less
|
||
|
Operating platform
|
Windows OS ; With E'xcel report output and finishing output (optional)
|
|
Language
|
Chinese (English)
|
|
Measurement accuracy
|
Reproducibility within 2%, time 30 seconds (specimen polished)
|
|
Test mode
|
Built-in standard module : General hardness, hardening curve, multiple sets of test pieces and so on
|
|

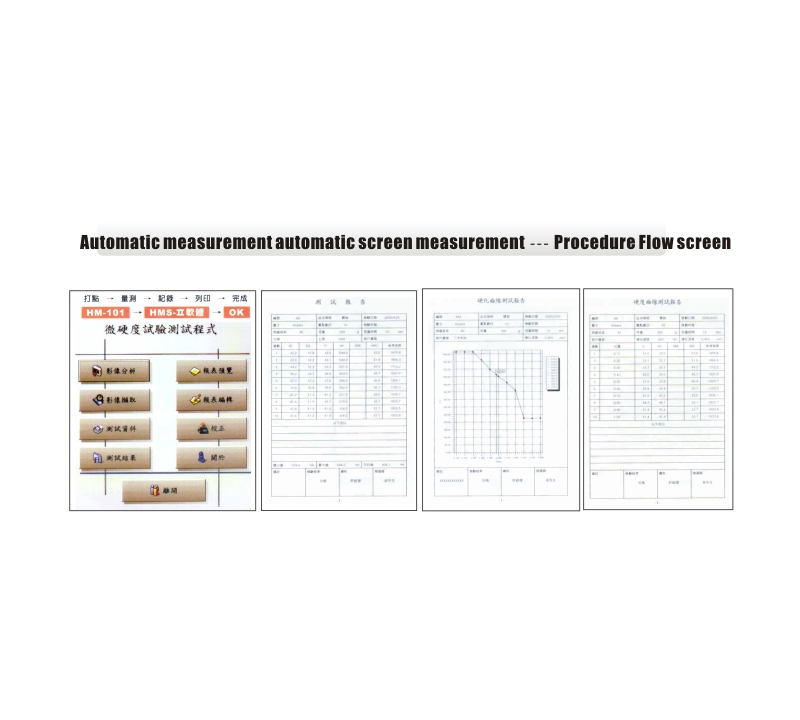

Report format
|
Eight formats are available
|
|
Report edits
|
Provide the report file format for modification
|
|
Report output
|
data (Data) The value is linked to E'xcel to make the report format yourself
|
|
ardening depth
|
Can automatically calculate the effective hardening layer depth
|
|
Hardness curve
|
Can choose a number of hardness curves with the analysis. Comparison (more than four)
|
|
Brightness display
|
Automatically show the brightness of the capture, help to improve the accuracy of measurement
|
|
Computer hardware
|
General PC PC are applicable
|
