3R Rockwell Hardness Tester (Continental)
Reference load : 10 Kgf
Test load : 60 / 100 / 150 Kgf
Minimal scribe : 0.5 HR
Maximum workpiece height : 170 mm
Maximum workpiece depth : 135 mm
physical dimension : 460 x 238 x 630 mm
weight : 65 Kg
Standard accessories
Rockwell hardness base (3R)
Diamond thimble / 1/16 " Steel frame / 1/16 " Steel ball
testing platform / Large platform / V-type support station
Standard sheet / Dust cover
|
Models
|
Rockwell Hardness Machine
|
Surface Rockwell Hardness Machine
|
|
|
Specifications
|

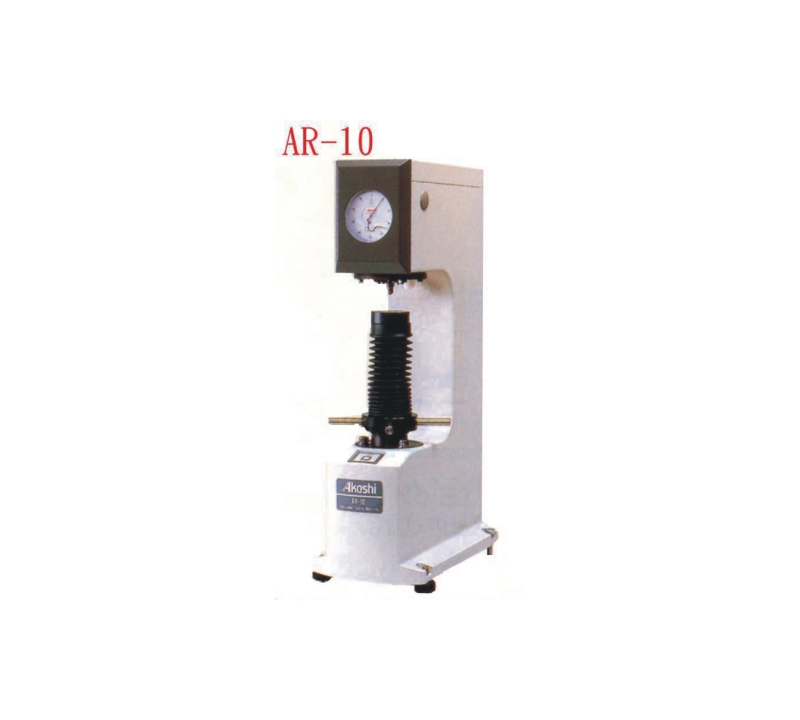

AR-10
|

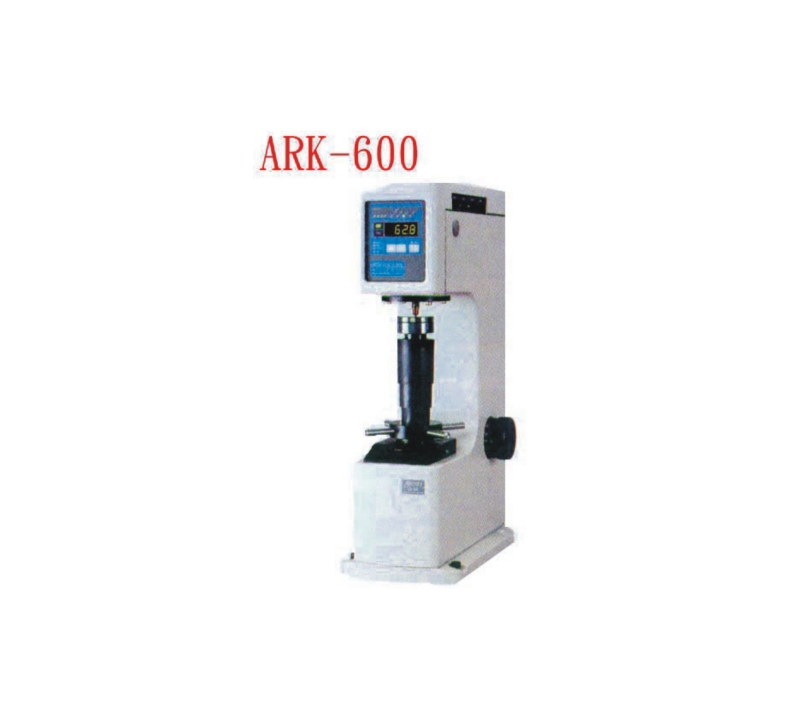

ARK600
|

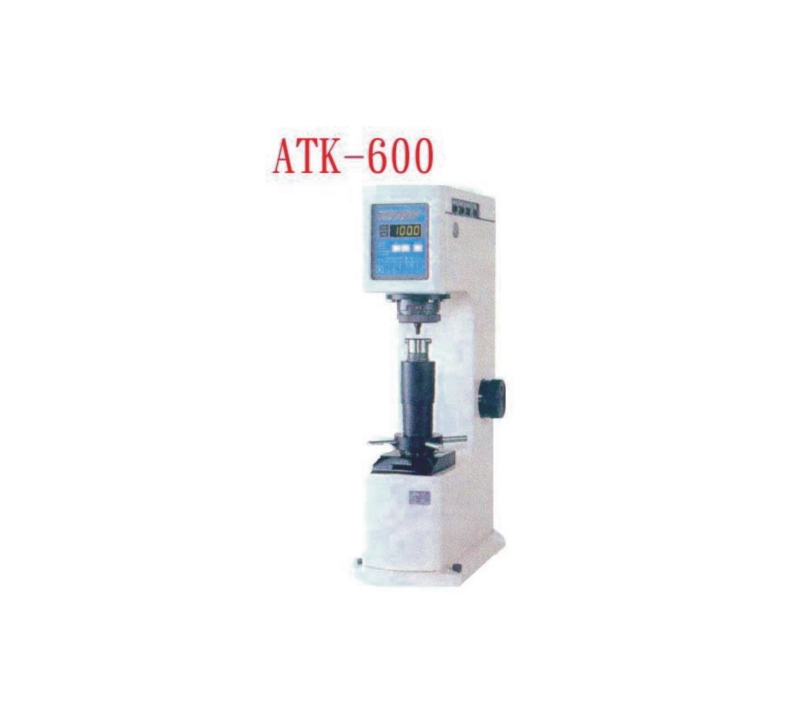

ATK-600
|
|
Initial load
|
10kg
|
3 Kg ; 10Kg
|
|
|
Test load
|
60,100,150Kgautomatic (load. maintain. In addition to the load)
|
15,30,45,60,100,
150Kgautomatic (load. maintain. In addition to the load)
|
|
|
Minimum score value
|
0.5HR(Pointer type)
|
0.1HR(LEDDigital Display)
|
LED Digital Display
|
|
Indentation
|
--
|
Manual
|
Manual
|
|
Test the way of action
|
Manual
|
Manual
|
|
|
List machine
|
no
|
Optional
|
Optional
|
|
Maximum workpiece size method
|
140X155mm
|
140X122mm
|
140X122mm
|
|
Machine size
|
220X455X655
|
210X486X680
|
210X486X680
|
|
Weight
|
38kg
|
42kg
|
|
|
power supply
|
AC 100V ± 10 % ; 50 / 60 Hz
|
||
