Optical accessories --- fixture articles - Made in Switzerland FISSO series / Japanese KANETEC magnetic block / mini vise clamp fixture

  • Porduct feature
  • Technical Scope
    • Product Name
      Optical accessories --- fixture articles - Made in Switzerland FISSO series / Japanese KANETEC magnetic block / mini vise clamp fixture
    • Product Model
      XS-13.50
    • Characteristic

      No content

    • Accessories
      test1
    • Notations
      test2

  • Made in Switzerland FISSO series

    Type
    Construction
    Sucking up
    Pillar + full length
     of magnetic pole
    Spacing from the aperture

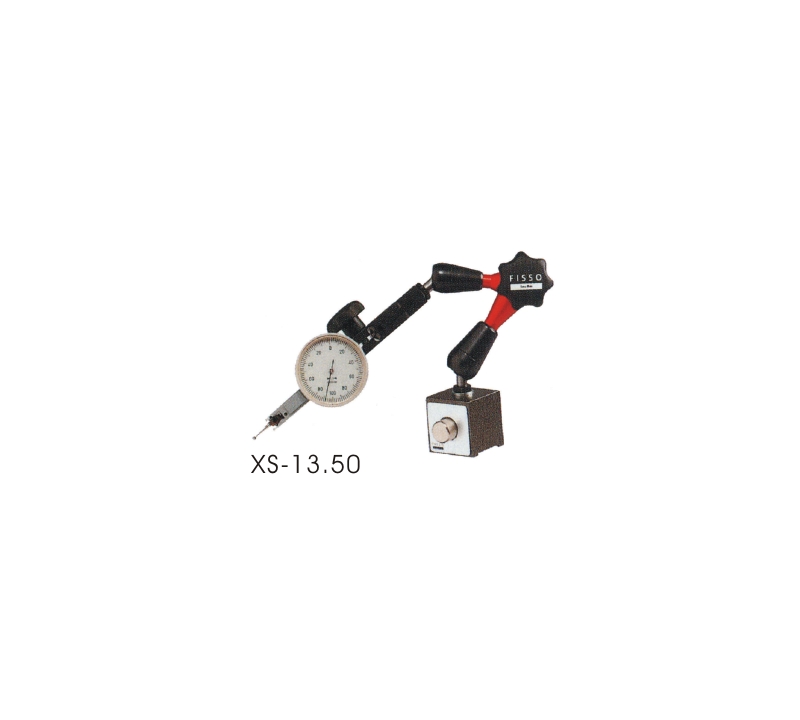

    XS-13.50
    mechanical
    40 kgf
    225 mm
    ψ6、ψ8 mm
    Dovetail slot

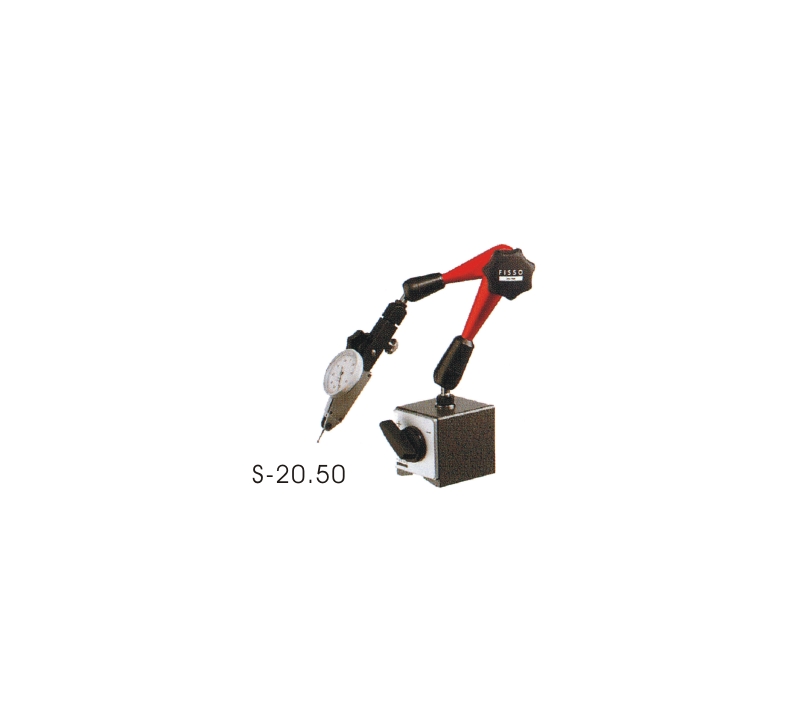

    S-20.50
    80 Kgf
    310 mm
    M-28.30
    100 kgf
    390 mm

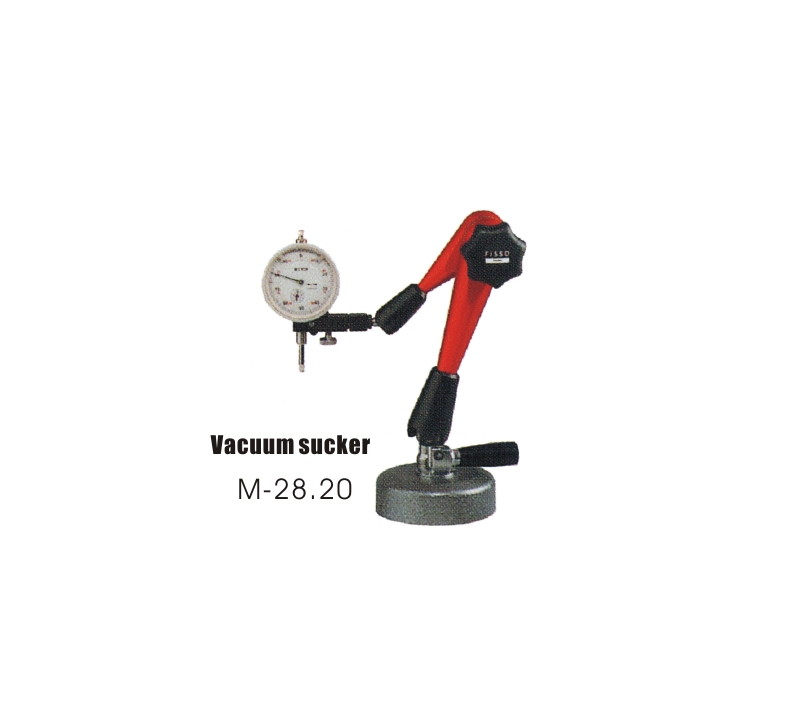

    M-28.20
    Vacuum sucker

    365 mm

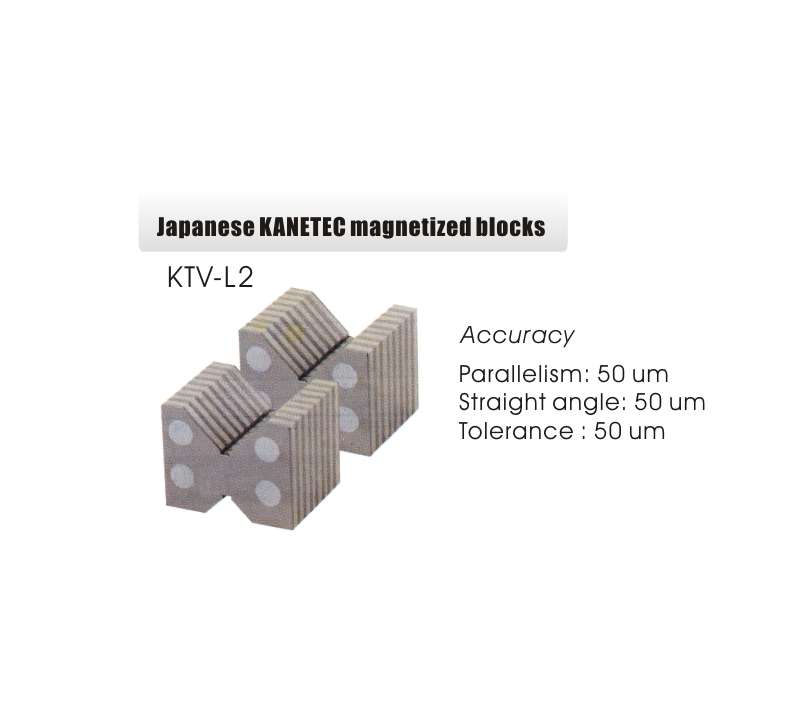

    Japanese KANETEC  magnetized blocks

    Type
    Parallelism
    Value angle
    tolerance
    KTV-L2
    50 um
    50 um
    50 um

    Mini vise clamp fixture

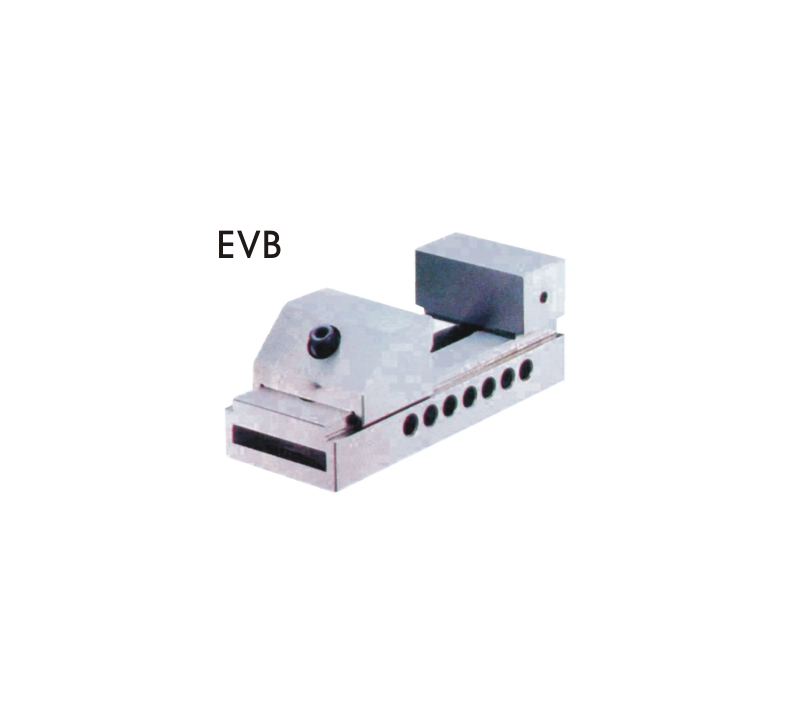

    EVB - Parallelism and straight angle --- 0.005 mm (100 m/m)

    Specifications
    width
    Jaws high
    Open
    Total height
    Total length
    VP-10
    24
    10
    18
    29
    63
    VP-20
    48
    25
    65
    55
    140
    VP-25
    63
    30
    90
    60
    170
    VP-30
    73
    35
    98
    68
    190
    VP-40
    98
    45
    125
    90
    225
    VP-50
    125
    50
    150
    100
    287
    VP-60
    150
    50
    200
    100
    330

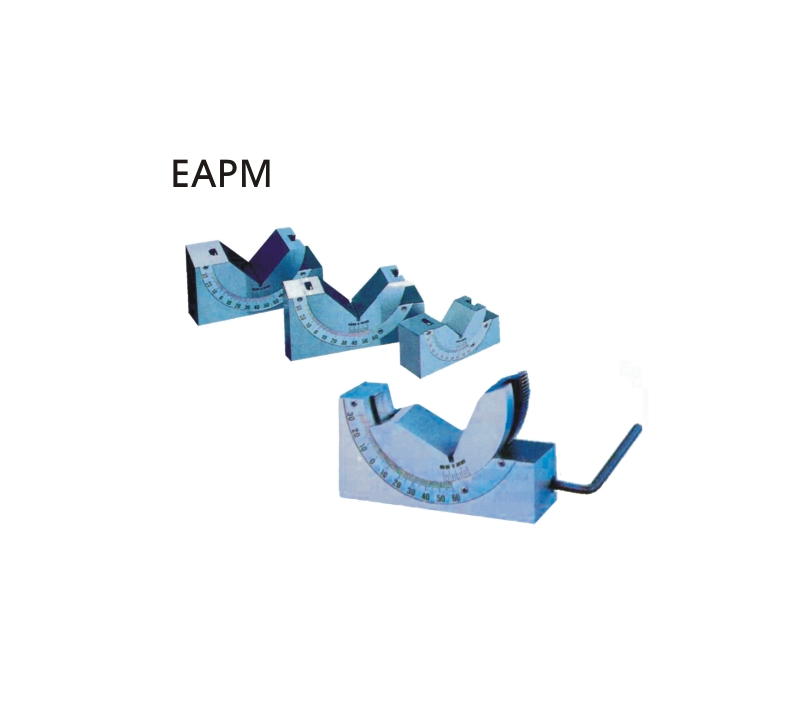

    EAPM - Parallelism and straight angle --- 0.005 mm (100 m/m)

    Angle tolerance : ± 10' ; Angle adjustment: 0 ~ 60

    model
    EAPM-1
    EAPM-2
    EAPM-3
    H
    47
    47
    32
    W
    46
    30
    25
    L
    102
    102
    75
    H
    28
    28
    22
    weight
    1.5kg
    1kg
    0.5kg
