Optical accessories - fixture articles - national system ECE series / Japanese KANETEC series

  • Porduct feature
  • Technical Scope
    • Product Name
      Optical accessories - fixture articles - national system ECE series / Japanese KANETEC series
    • Product Model
      ECE-300
    • Characteristic

      No content

    • Accessories
      test1
    • Notations
      test2

  • State-made ECE series

    Type
    Arm length
    Magnetic seat
    magnetic force
    Main column; diameter
    pillar: diameter
    Adjustable magnetic seat

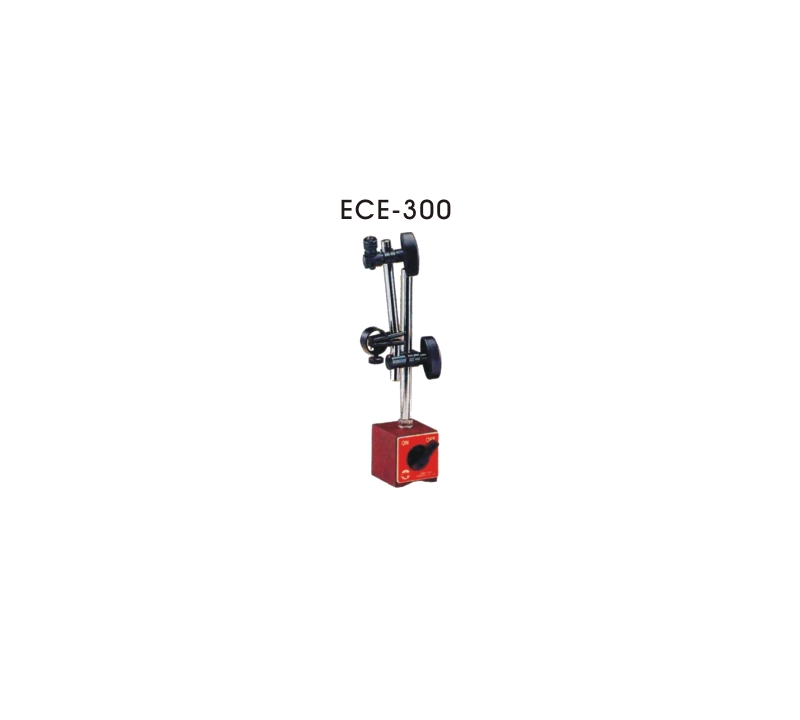

    ECE-300
    340mm
    60x50x55mm
    80kg
    12x176 mm
    10x165 mm
    Hydraulic universal magnetic seat
    ECE-300
    340mm
    60x50x55mm
    80kg

    Mechanical Universal Magnetic Block

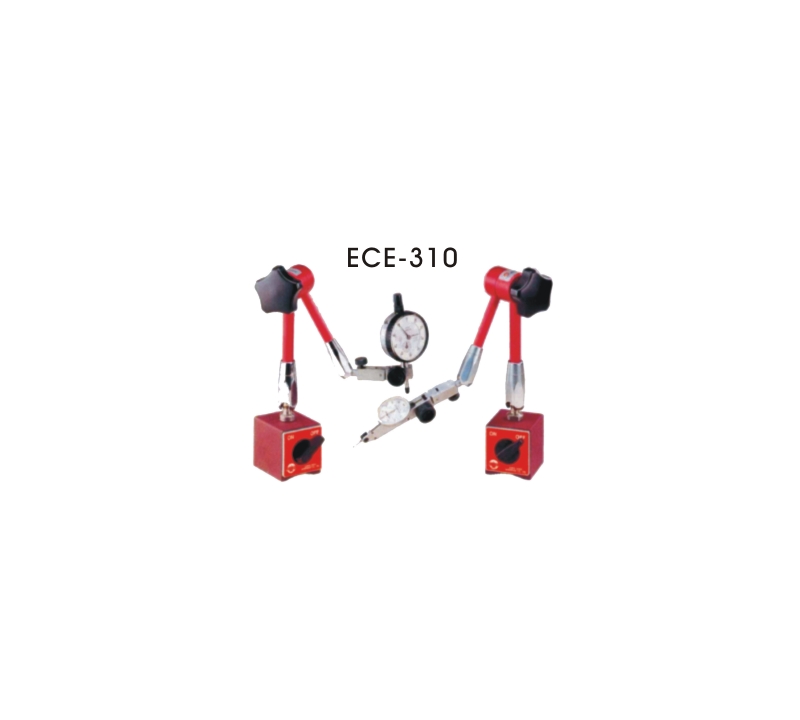

    ECE-310
    340mm
    60x50x55mm
    80kg
    Curved magnetic seat

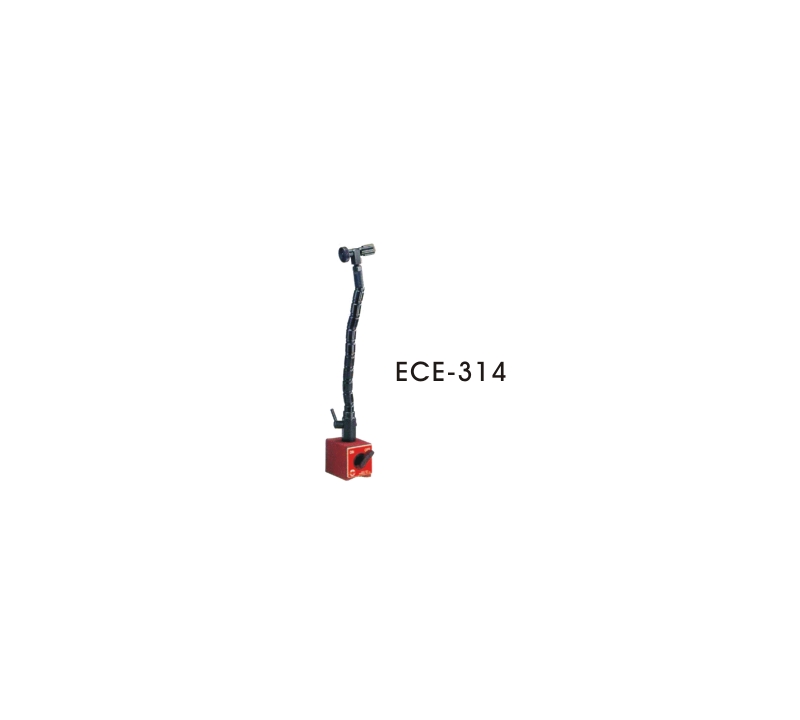

    ECE-314
    315mm
    60x50x55mm
    80kg
    Mini Universal Magnetic Block

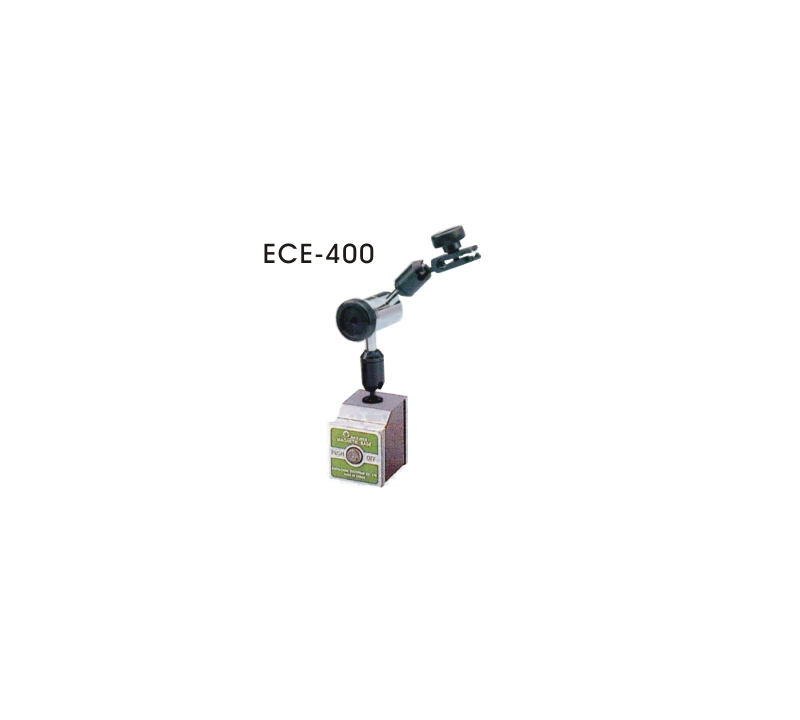

    ECE-400
    131mm
    63x40x49mm
    35kg

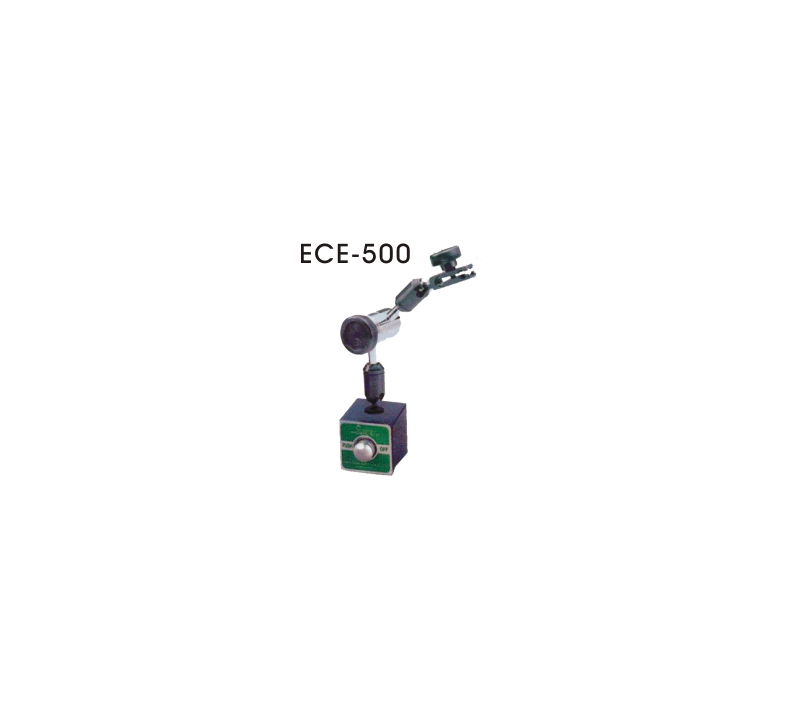

    Mini Universal Magnetic Block
    ECE-500
    131mm
    30x30x30mm
    17kg

    Japanese  KANETEC series

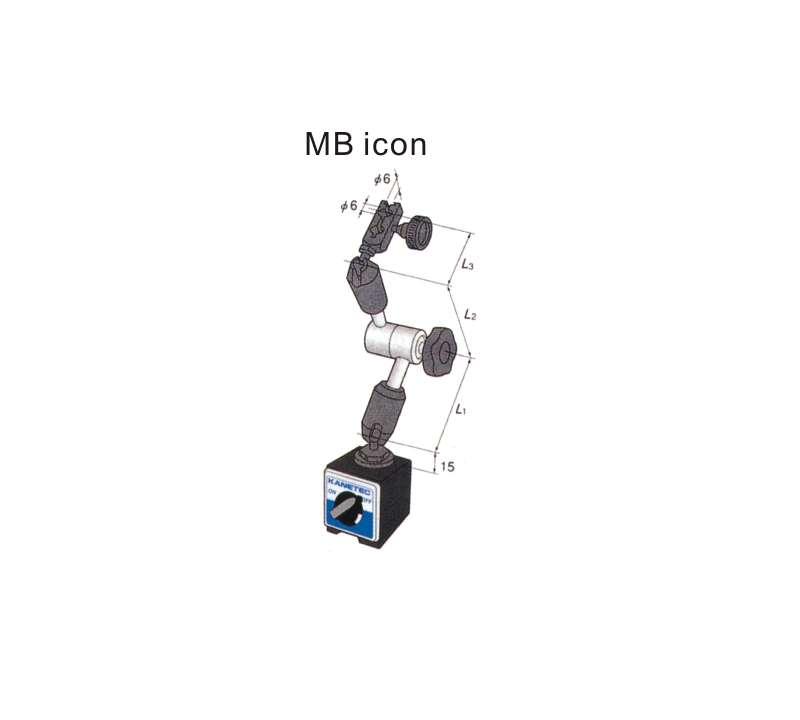

    Mechanical miniature universal magnetic seat

    Type
    Arm length
    Magnetic seat
    Clamp hole diameter
    on
    in
    under
    long
    width
    high

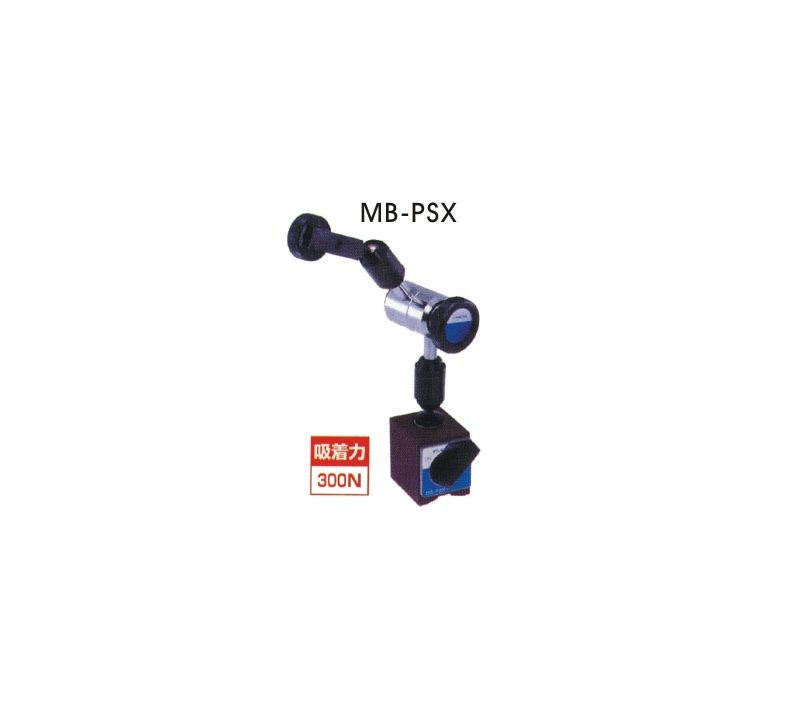

    MB-PSX
    46
    46
    39
    30
    30
    30
    ψ6 mm

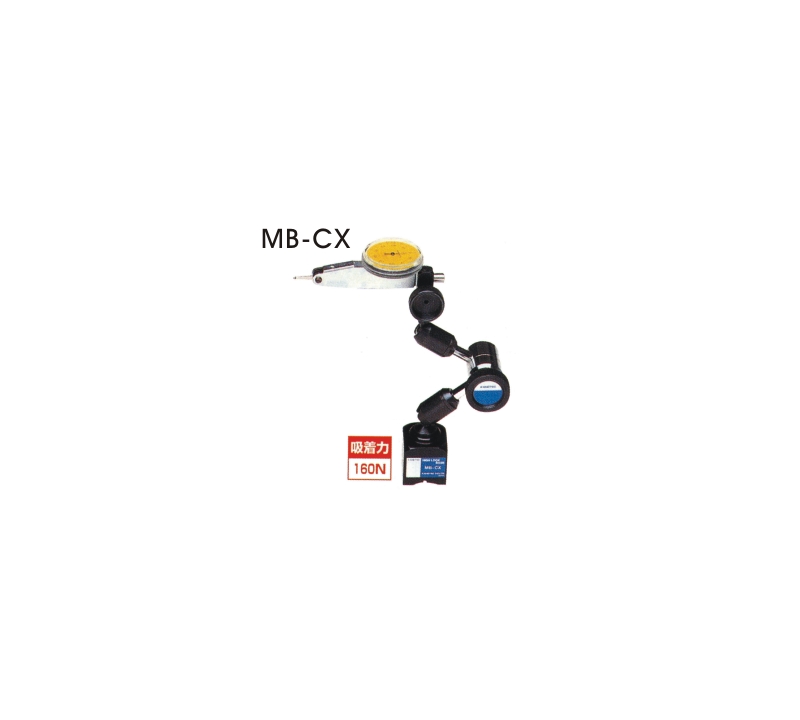

    MB-CX
    46
    46
    39
    28
    28
    29

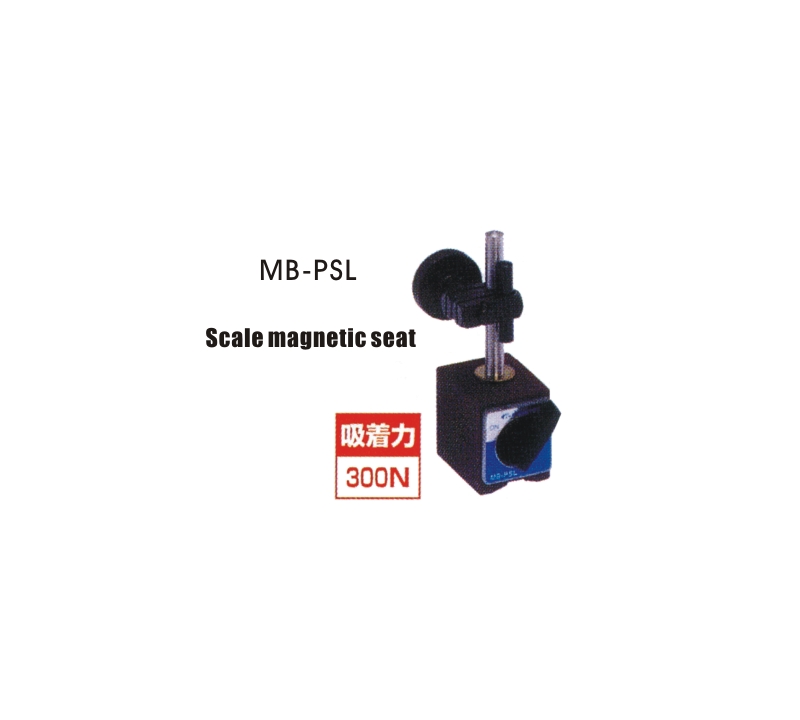

    Scale magnetic seat

    Type
    pillar
    Magnetic seat
    Clamp hole diameter
    diameter
    height
    long
    width
    high
    MB-PSL
    7
    54
    34
    30
    35
    ψ6 mm
