LSM laser features
◎3200 times per second high-speed laser scanning can
achieve automatic production of high-efficiency online
measurement.
◎The installation unit of the measurement unit enables a
variety of measurements.
◎The LSM-500S is specifically designed for measuring
densities.
◎Dust / Waterproof Protection class IP-64 compliant.
◎The optical characteristics of each measurement unit
can be stored in the provided ID unit.
LSM-500S technical specifications
|
Measuring range
|
0.005 ~ 2 mm
|
|
Minimal indication
|
0.001~10 um
|
|
Repetitive linearity
|
± 0.03 um
|
|
Linear accuracy
|
± 0.3 um
|
|
Total error
|
± 0.4 um
|
|
Measurement area
|
1 x 2 mm
|
|
Scanning frequency
|
3200 scan/s
|
|
Laser wavelength
|
650 um (Visible light)
|
|
Laser light speed
|
76 m/s
|
|
surroundings
|
0 ℃ ~ 40 ℃
|
|
Weight
|
1 kg
|

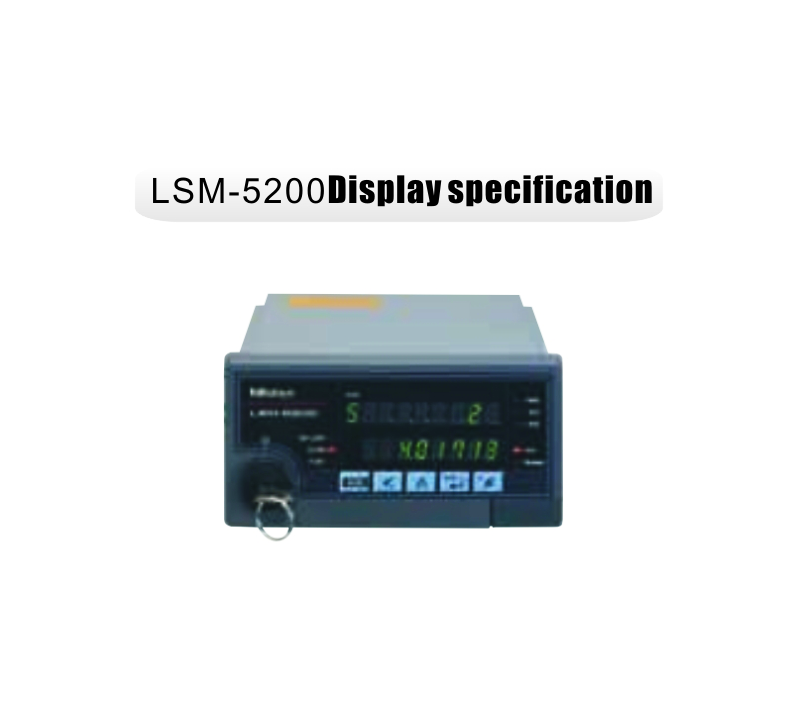

LSM-5200 display technical specifications
|
Measurement mode
|
Waiting, single measurement, continuous measurement
|
|
GO / ±Ngjudgment
|
Nominal value ± tolerance setting, upper and lower limits set
|
|
Display the number of digits
|
8 Number of bits
|
|
Calculations
|
Available when connecting an external PC via RS-232C or USB output
|
|
Data output
|
USB2.0，RS-232C and I / O-Analog Output
|
|
Weight
|
1.4 kg
|
|
power supply
|
24V Dc±10%,1A
|
