US-made simple concentricity tester (UNIVERSAL)

  • Porduct feature
  • Technical Scope
    • Product Name
      US-made simple concentricity tester (UNIVERSAL)
    • Product Model
      A-10
    • Characteristic

      Midel A

      model
      Measurement range (mm)
      Applicable diameter
      Applicable length
      A-10
      3~25
      75

      Midel B

      model
      Measurement range (mm)
      Applicable diameter
      Applicable length

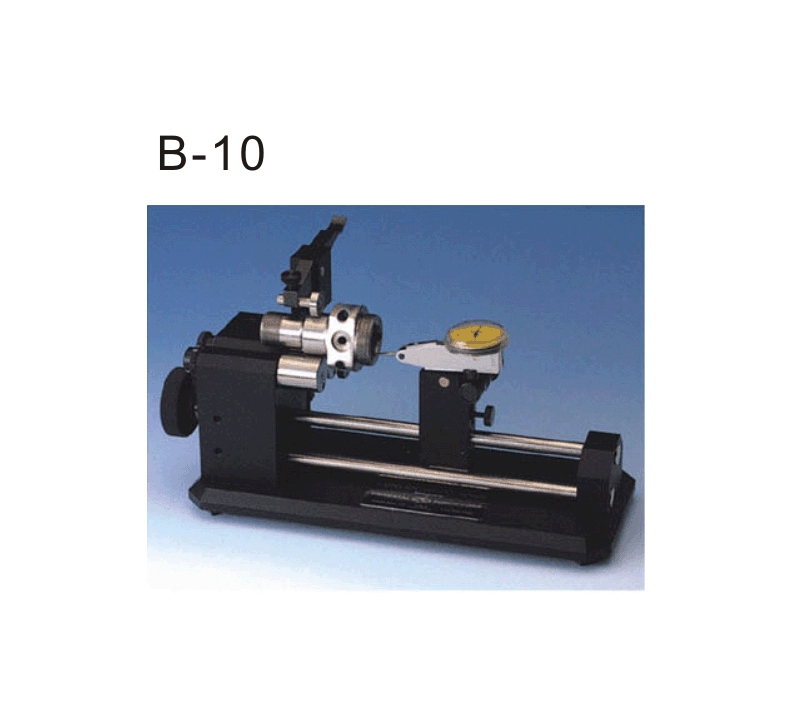

      B-10
      3~25
      102
      B-20
      10~50
      152
      B40
      20~102
      203

      Midel K1

      model
      Measurement range (mm)
      Applicable diameter
      Applicable length

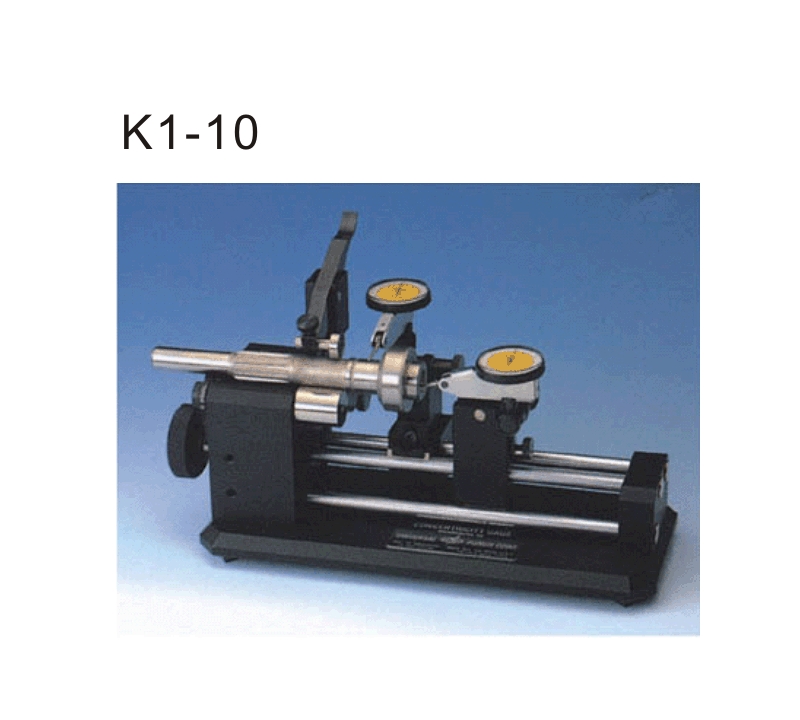

      K1-10
      3~25
      102
      K1-20
      10~50
      152
      K1-40
      20~102
      203

      Midel KK1

      model
      Measurement range (mm)
      Applicable diameter
      Applicable length

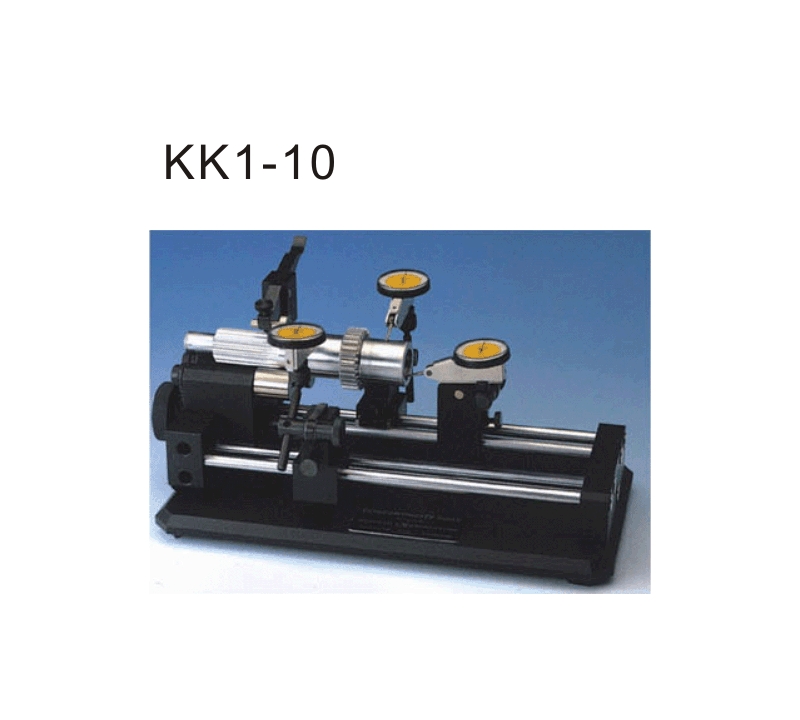

      KK1-10
      3~25
      102
      KK1-20
      10~50
      152
      KK1-40
      20~102
      203



    • Accessories
      test1
    • Notations
      test2

  • Midel H

    model
    Measurement range (mm)
    Applicable diameter
    Applicable length

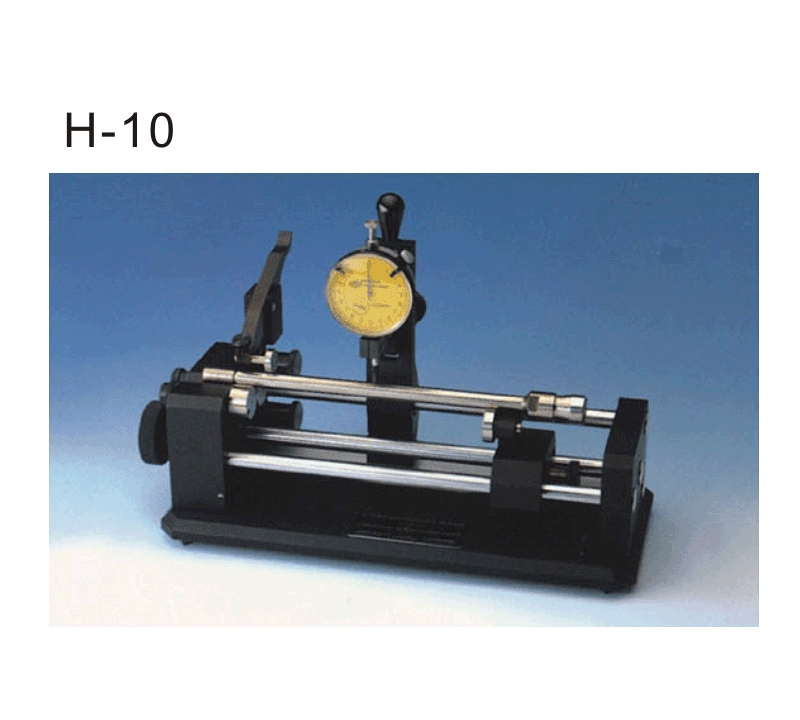

    H-10
    3~25
    305
    H-20
    10~50
    305
    H-40
    20~102
    305

    Midel HL

    model
    Measurement range (mm)
    Applicable diameter
    Applicable length

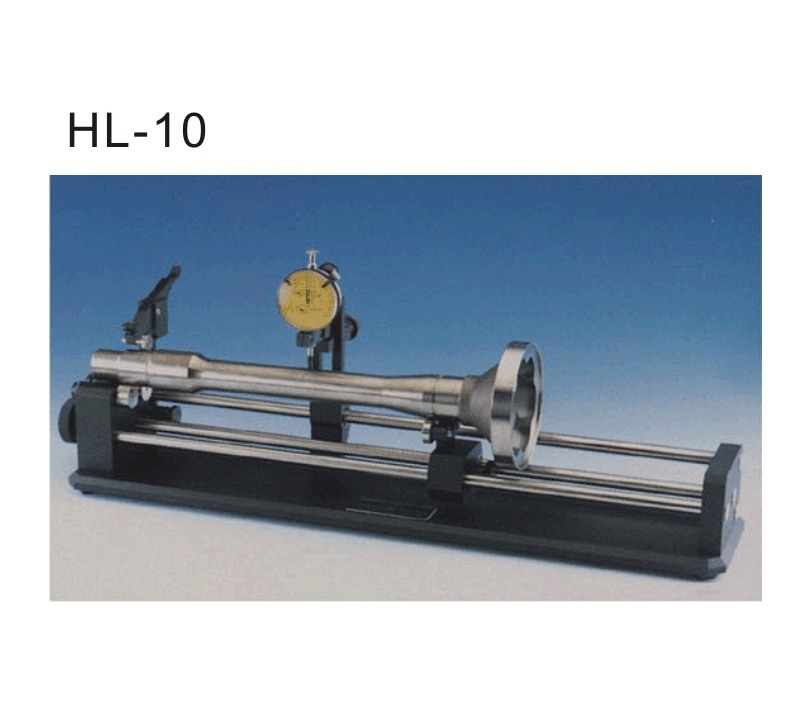

    HL-10
    3~25
    610
    HL-20
    10~50
    HL-40
    20~102

    Midel J

    model
    Measurement range (mm)
    Applicable diameter
    Applicable length

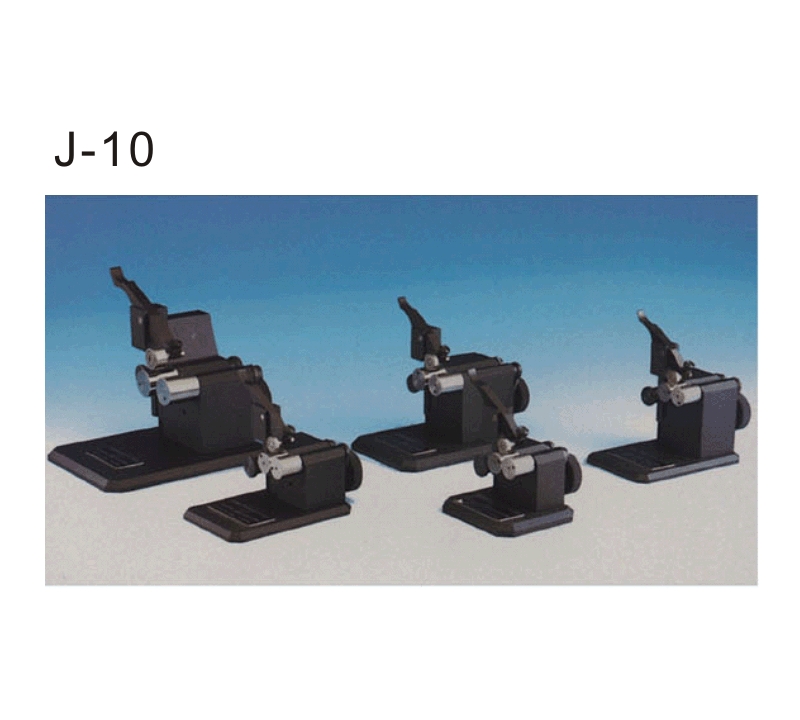

    J-10
    3~25
    102
    J-20
    10~50
    152
    J-40
    20~102
    203
