126 Series Threaded Diameter Micrometer
|
Numbering
|
Measuring range
|
Resolution
|
|
126-125
|
0-25mm
|
0.01mm
|
|
126-126
|
25-50mm
|
|
|
126-127
|
50-75mm
|
|
|
126-128
|
75-100mm
|

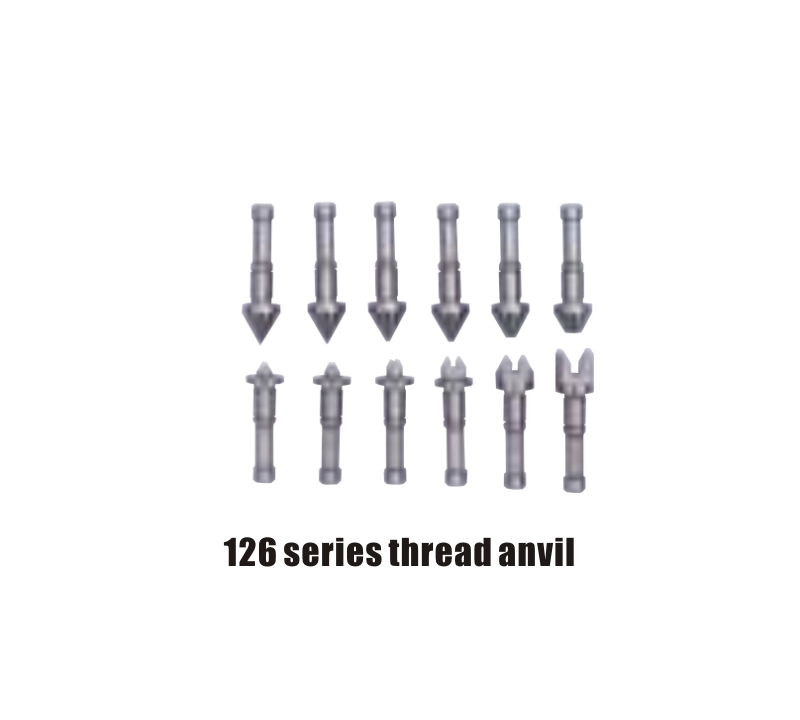

126 series thread anvil
|
Numbering
|
Measuring range
|
Resolution
|
|
126-801
|
0.4-0.5mm / 64-48TPI
|
60˚
|
|
126-802
|
0.6-0.9mm / 44-28 TPI
|
|
|
126-803
|
1-1.75mm / 24-14 TPI
|
|
|
126-804
|
2-3mm / 13-9 TPI
|
|
|
126-805
|
3.5-5mm / 8-5 TPI
|
|
|
126-806
|
5.5-7mm / 4.5-3.5 TPI
|
|
|
126-800
|
126-801~126-806 Set of groups
|

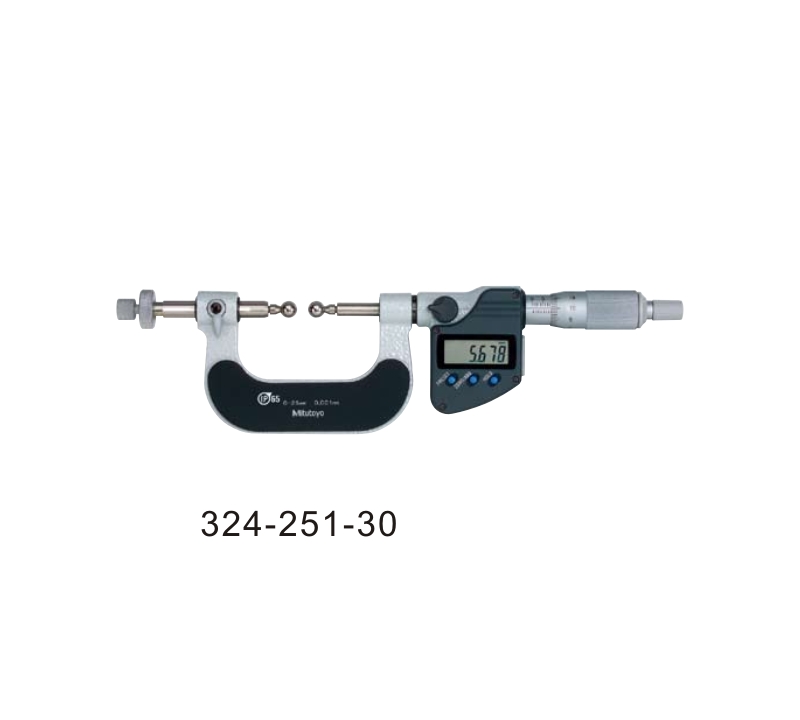

324 series digital gear outer diameter micrometer
|
Numbering
|
Measuring range
|
Resolution
|
|
324-251-30
|
0-25mm
|
0.001mm
|
|
324-252-30
|
25-50mm
|
|
|
324-253-30
|
50-75mm
|
|
|
324-254-30
|
75-100mm
|

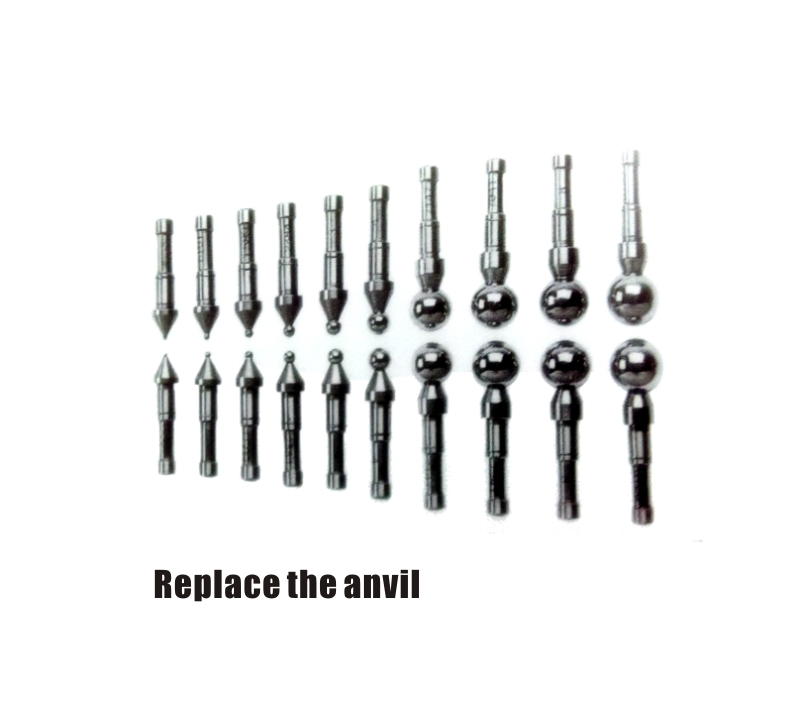

Replace the anvil
|
Numbering
|
Measure anvil specifications
|
Gear modulus
|
|
124-801
|
0.8 mm
|
0.5-0.55
|
|
124-802
|
1 mm
|
0.6-0.65
|
|
124-803
|
3/64” mm
|
0.7-0.8
|
|
124-820
|
11/32” mm
|
5.0-5.25
|
