▓ application:
●To test the use of the appropriate screw torque specifications,
to ensure that the overall production quality of products.
●Applicable specifications: M1 ~ M10 of the screws, bolts.
▓ characteristic:
●Screw lock, release button test
●Screw in the finished product on the appropriate torque value
and bolt bad, etc. test
●Automatically determine the performance of qualified or not
●Applicable specifications: M1 ~ M4 of the screws
DI-5 series
|
Model
|
DI-5-RL2
|
DI-5-RL10
|
DI-5-TW20
|
||
|
Measurement range
|
N.m
|
0.015~2.000
|
0.15~10.00
|
0.15~20.00
|
|
|
Kgf.cm
|
0.15~20.00
|
1.5~100.0
|
1.5~200.0
|
||
|
Ldf.in
|
0.15~18.00
|
1.5~90.0
|
1.5~180.0
|
||
|
Accuracy
|
±0.5%(or 199 or less : ± 1 digit)
|
||||
|
Display window
|
3 1 / 2 –digit LED display screen
|
||||
|
Measurement mode
|
P-P，T-R，P-D Three modes (see P-200)
|
||||
|
Qualified or not
Determine the function
|
Set the measured value
|
Confirm the set value with LED indicator or beep
|
|||
|
Allow the setting of the error value
|
In the range of ± 3 or 10% of the set value, with an LED indicator or beep
Confirm the error value
|
||||
|
Transmission interface
|
RS-232C(Baud rate : 9,600 )
|
||||
|
Data storage
|
400
|
||||
|
Automatic shutdown function
|
When the operation of any key is stopped, the power is turned off automatically after 10 minutes
|
||||
|
power supply
|
Nickel - cadmium batteries : 1.2V/5pcs (450mAh)
|
||||
|
Charge / continuous use time
|
4 hours / 10 hours
|
||||
|
Torque detection axis
|
6.35HEX
|
6.35HEX
|
□9.5mm
|
||
|
Weight
|
monitor
|
210g
|
|||
|
Detector
|
120g
|
120g
|
120g
|
||
|
Standard equipment
|
#1，#2 Screwdriver head
|
#2，#3 Screwdriver head
Charging transformer
|
#8，#10 Standard hexagonal sleeve
|
||
|
Function (see P-200)
|
LC，BS，LH，MY，PO，IO，BA
|
||||

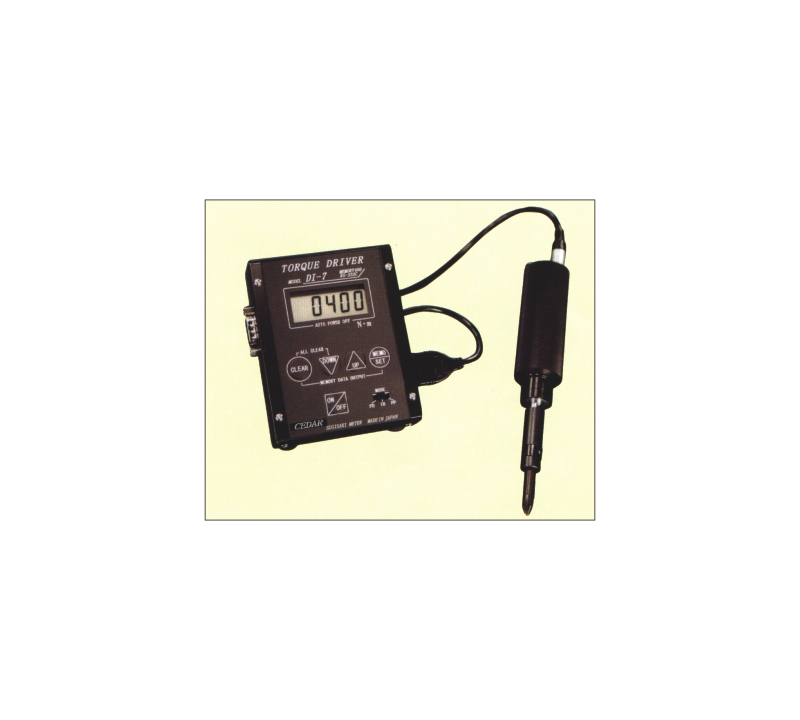

DI-7 series
|
Model
|
DI-7-RL5
|
DI-7-RL5
|
||
|
Measurement range
|
N.m
|
3.0~49.0 nM.m
|
0.030~4.900
|
|
|
Kgf.cm
|
0.030~5.000
|
0.30~50.00
|
||
|
Ldf.in
|
0.030~4.500
|
0.30~45.00
|
||
|
Accuracy
|
±0.5%( or below 499 : ± 3 digit)
|
|||
|
Display window
|
4 –digit LED display screen
|
|||
|
Measurement mode
|
P-P，T-R，P-D Three modes (see P-200)
|
|||
|
Transmission interface
|
RS-232C(Baud rate : 9,600 )
|
|||
|
Data storage
|
400
|
|||
|
Automatic shutdown function
|
When the operation of any key is stopped, the power is turned off automatically after 10 minutes
|
|||
|
power supply
|
Nickel - cadmium batteries : 1.2V/5pcs (700mAh)
|
|||
|
Charge / continuous use time
|
8 hours / 20 hours
|
|||
|
Torque detection axis
|
6.35HEX
|
|||
|
Weight
|
monitor
|
415g
|
||
|
Detector
|
50g
|
120g
|
||
|
Standard equipment
|
#0，#1 Screwdriver head
Charging transformer
|
#1，#2 Screwdriver head
Charging transformer
|
||
|
Function (see P-200)
|
LC，BS，LH，MY，PO，IO，BA
|
|||
