About m & h

●From Germany's m & h to customer demand-oriented

  technological innovation；Product manufacturing and

  industry model of a comprehensive solution, has become

  the leader in machine measurement technology.

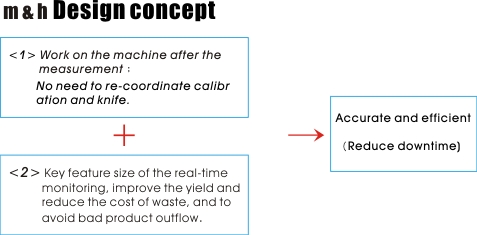

Why need a probe

<1> Improve efficiency (reduce downtime).

<2> Reduce costs (reduce NG)

●Real-time process monitoring.

●Measure the data immediately feedback,

  and modify the processing parametersAccording

  to the results.

●To ensure the quality of production and unit cost.

Choose the right probe, in order to bring the greatest benefits!

Applicability

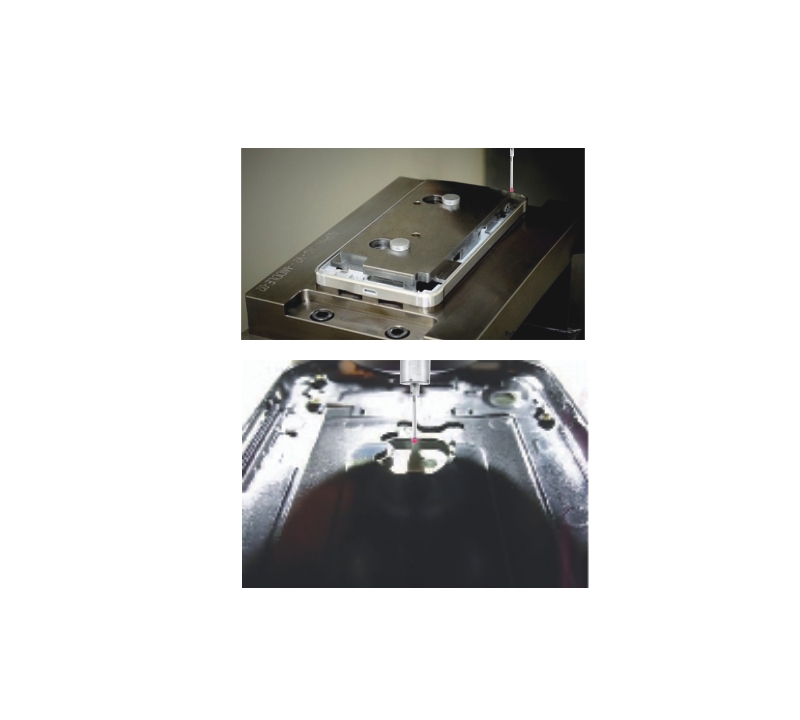

Mobile phone processing IRP25.41 / IRP40.01Can be done

on the CNC machine to do real-time measurement,and

according to the measurement results immediately adjust

the parameters, a significant reduction in downtime and

improve the yield!

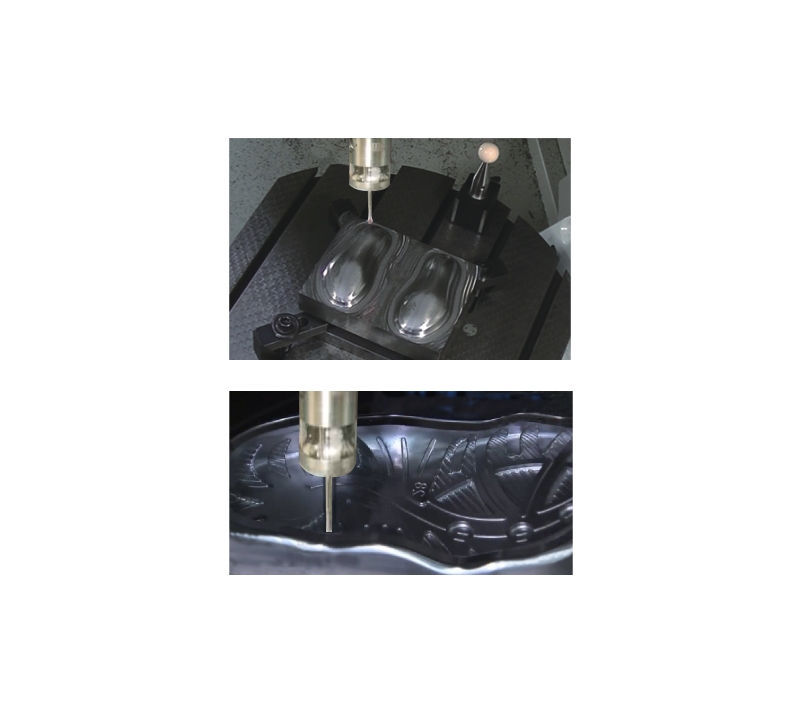

Mold processing

IRP40.01Before processing the first use of the probe and

the software for the positioning of the workpiece,

immediately after processing to detect the size,

so that the processing time in place!

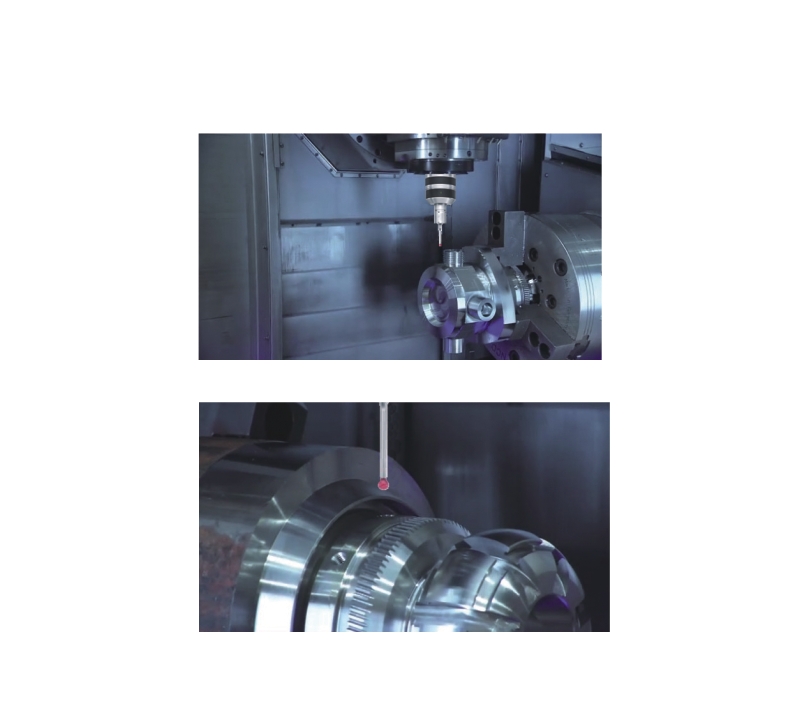

Medium processing

RWP38.41Quickly compare the workpiece and

process sampling, the effective control of the

 workpiece on the porous position between

the increase in production yield!

M & h machine on the determination of the series ---

 Probe articles

specifications

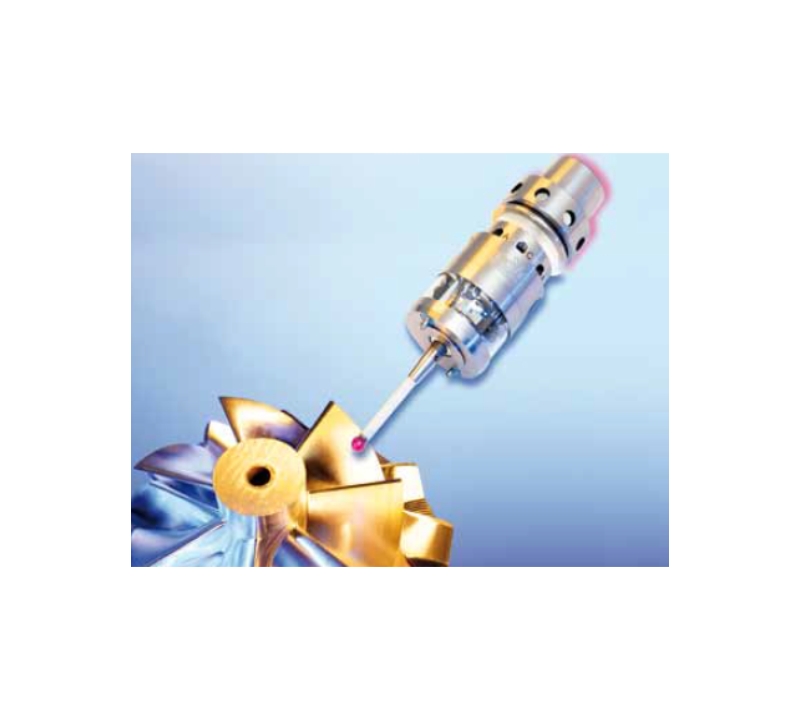

(1)IRP 25.41 Adjustable force, can be installed with

    long rod and star stylus to complete the more

    complex measurements.

(2)IRP 40.01 Ultra-small probe for small CNC and lathes.

(3)RWP 20.41 Applicable to large CNC, suitable for more

    complex projects.

(4)RWP 38.41 CNC for small size tools, or Z-limited CNC.

● The highest specification Ip68 seal protection ensures

    the life of the probe.

● No additional signal converters can be used to

   communicate with the controller.

●High compatibility, the current market support for all

  the mainstream controller.

  (FANUC、MITSUBISHI、SIEMENS、HEIDENHAIN)

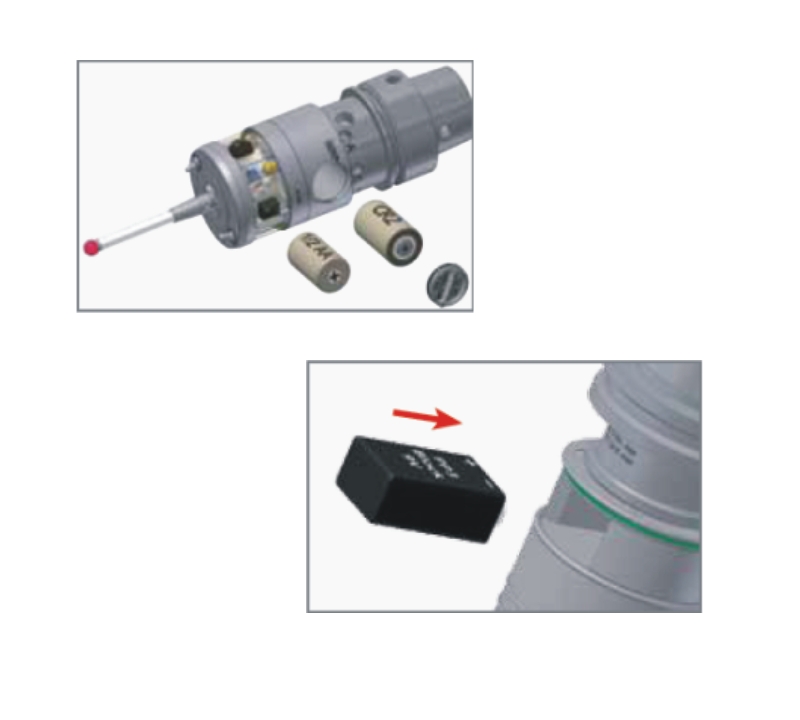

● No need for tools, you can quickly and simply replace

   the battery.

Operation logic

Very simple, and the concept of three yuan exactly the

same (mainly for two-dimensional measurement).

● Point, line, circle (inside and outside diameter)
