☆☆☆Fine-tuning standard type --- Manual three – Dimensional
coordinate measuring instrument (CMM) ☆☆☆
Instrument features :
<1> Real SWISS MADE Made in Switzerland.

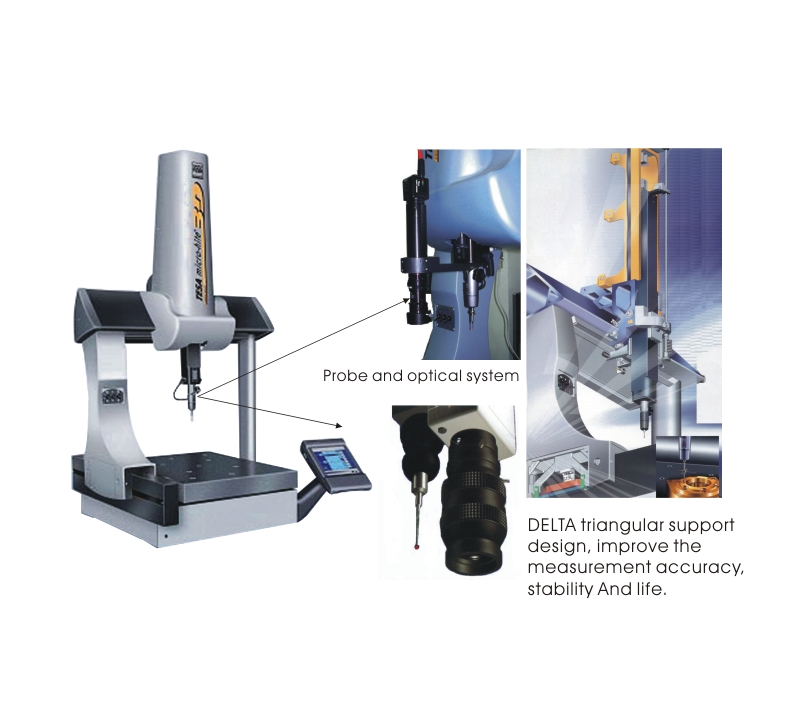

<2> Using TESA patented optical linear read head
measurement system.
<3> Best design--- DELTA Triangle support design,
improve the measurement accuracy, stability
and life.
<4> Affinity design --- Dedicated operation panel
combined with powerful computing software,
no PC can operate.
<5> TESA REFLEX Measurement of the use of
software --- both practical and simple needs
of the trend of the design.
<6> The stability of the triaxial displacement was
confirmed using 22 air bearings.
<7> Carefully designed to design the most ergonomic
structural design.
<8> Multi-purpose applicability design :
1. Single touch probe, hard probe, rotary probe,
optical lens multi-purpose.
2. (Ψ 0.5 ~ 8 mm), L = 10/20/30 mm, star probe multi-purpose.
☆☆☆Instrument hardware system specification ---
Manual three-dimensional coordinate
measuring instrument (CMM) ☆☆☆
<1> Measuring range (contact)---
X axis : 460 mm；Y axis : 510 mm；Z axis : 420 mm 。
<2> Measuring range (optics) ---
X axis : 460 mm ；Y axis: 475 mm；Z axis : 250 mm 。
<3> Minimum read value : 0.001 mm / 0.00001 inch。
<4> Use material--- Z-axis, bridge, bearings are used
ultra-light aluminum alloy material.
Work platform--- Made of granite, the table are
designed stainless steel screw
hole fixed fixture.
<5> Repeat accuracy : 3 um
<6> System accuracy : U1 = 3 + 3 L / 1000 um
U3 = 3 + 4 L / 1000 um
<7> Operating temperature : 20 ± 1 ℃
<8> Workpiece space--- X Axis : 600 mm；
Y Axis : 750 mm；
Z Axis : 430 mm
<9> Maximum load : 230 Kg
<10> Instrument appearance : 970 x 1620 x 930 mm (LxHxD)
；Instrument system weight : 190 Kg
<11> Power requirements : 115 ~ 230 Vac , 50 ~ 60 Hz ；0.3 ~ 0.7 A
<12> Pressure source demand : 4.8 ~ 8.3 bar (21ι/min)；
Must have air drying equipment
(with special attention).
