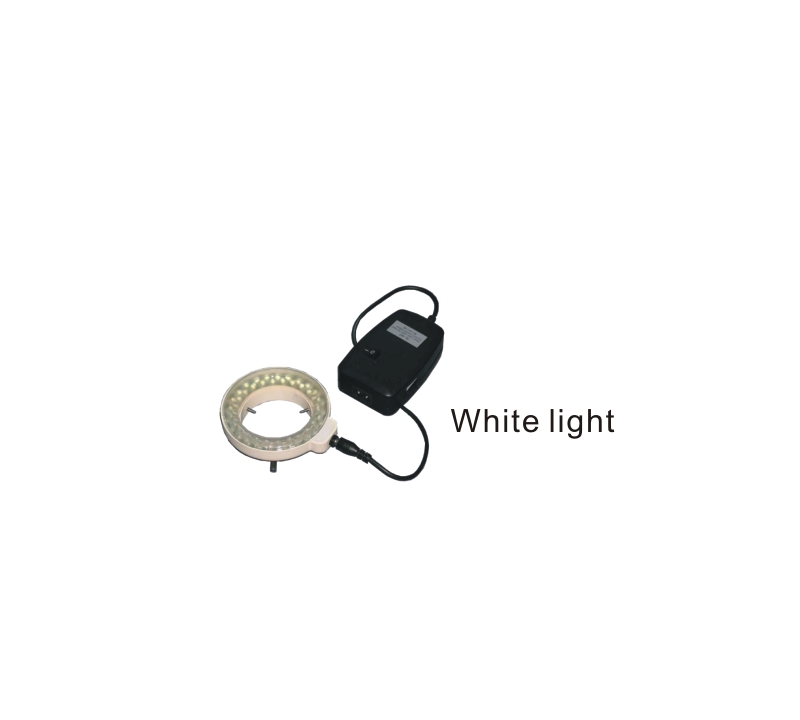

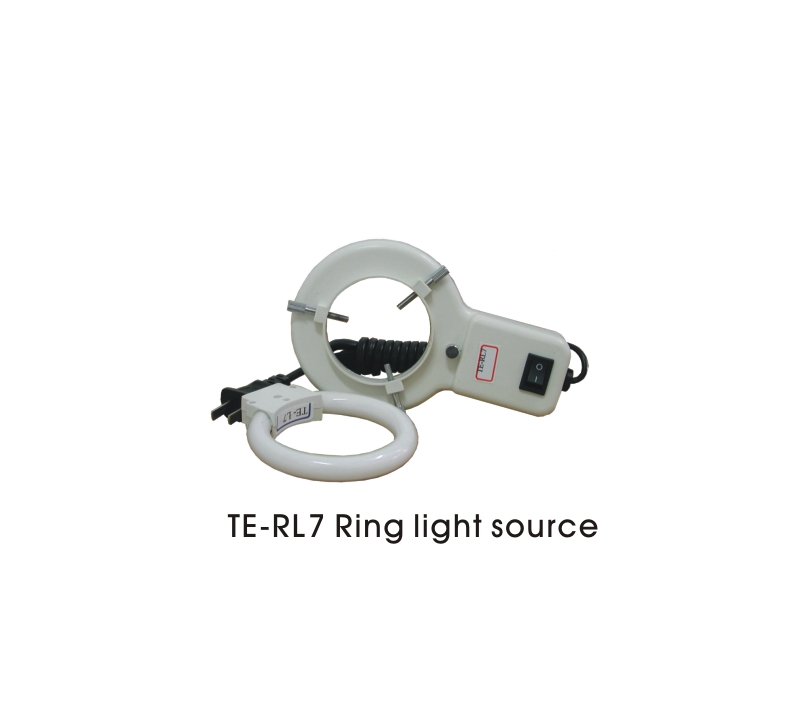

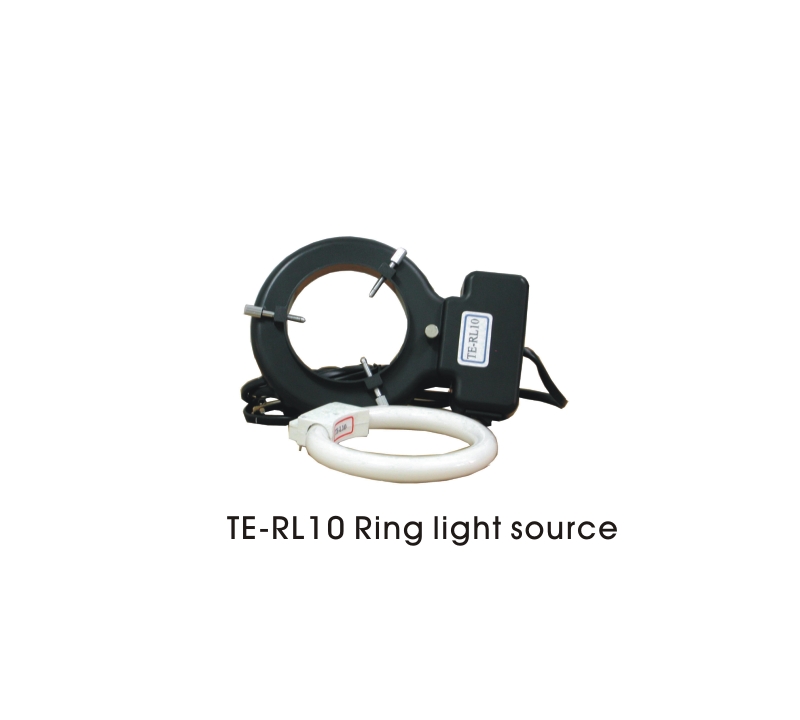

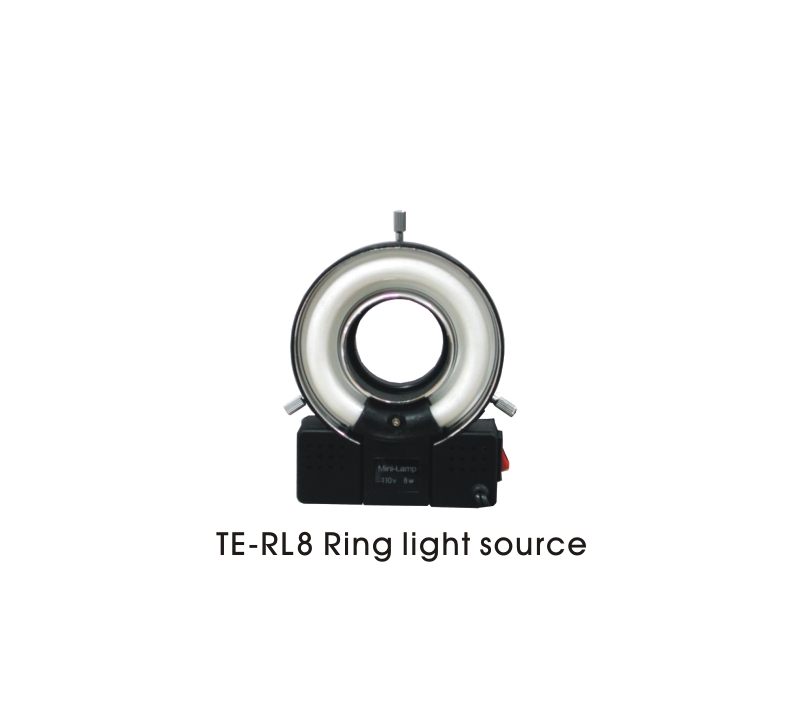

Microscope dedicated ring light source group
--- White light source
use : Can be connected to most of the stereoscopic microscope
or optical lens system, providing bright lighting. Color
saturation without shadow of the lighting;
with 7W / 8W / 10W.
Microscope dedicated ring light source group
--- LED special light source
use : Provide special LED light source design, connected to the
stereoscopic microscope or optical lens system, to provide
special image effects and image recognition clear.

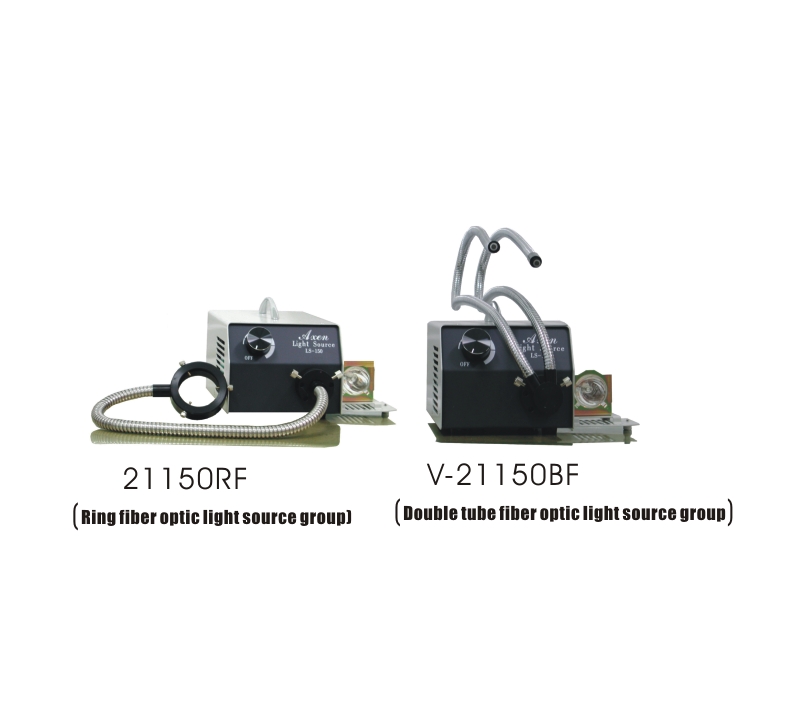

Fiber optic light source system group
--- Cold light source --- Hard tube or ring type
use : The use of optical fiber light guide to the object,
can effectively reduce the object by the heat source
caused by distortion or deterioration, resulting in
anti-observed effect.
applicability : Poor surface reflectivity, blind hole, high
precision fine parts, surface processing
and defect observation.

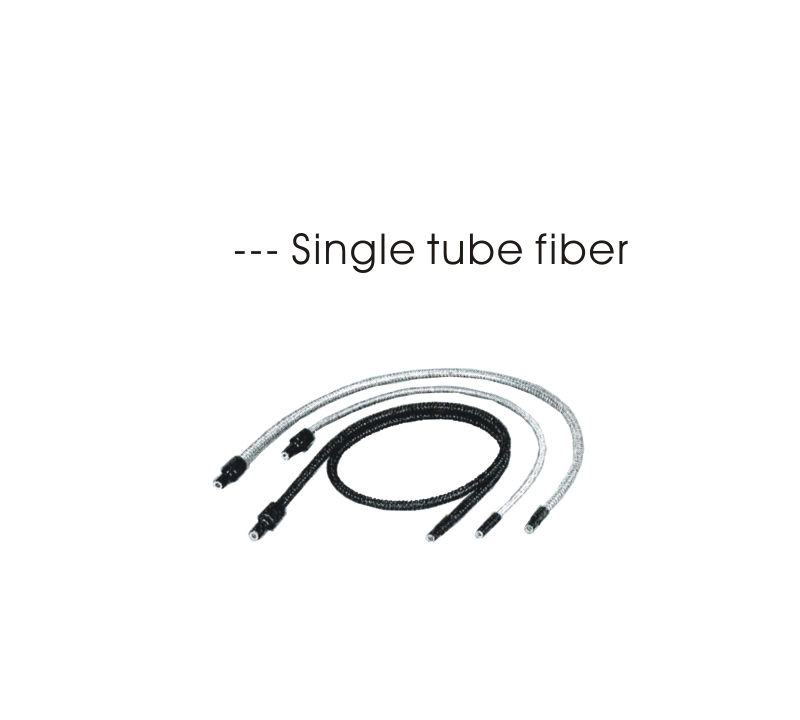

☆☆Hard tube type : Fiber optic ducts can be bent to the
appropriate position or angle, in order
to get the best light source lighting.

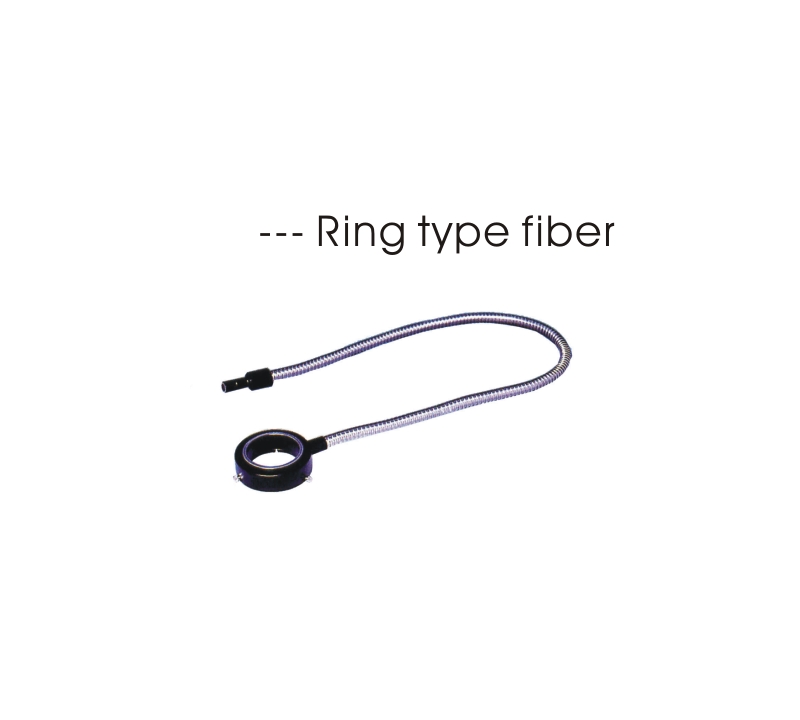

☆☆Ring type: Installed in the optical lens below the light
source through the optical fiber guide light
guide, can be evenly distributed in the field
of view.
Special light source
--- UV (UV LIGHT SOURCE) Hardening device
Features : The use of optical fiber light guide to the object,
can effectively reduce the object by the heat
source caused by distortion or deterioration,
resulting in observation when the anti-effect;
another fiber tube can be arbitrarily twisted to
adjust to the appropriate location or angle in
order to get the best light source lighting.
compatibility : Can be designed with different brands of
UV light source using quartz fiber tube.

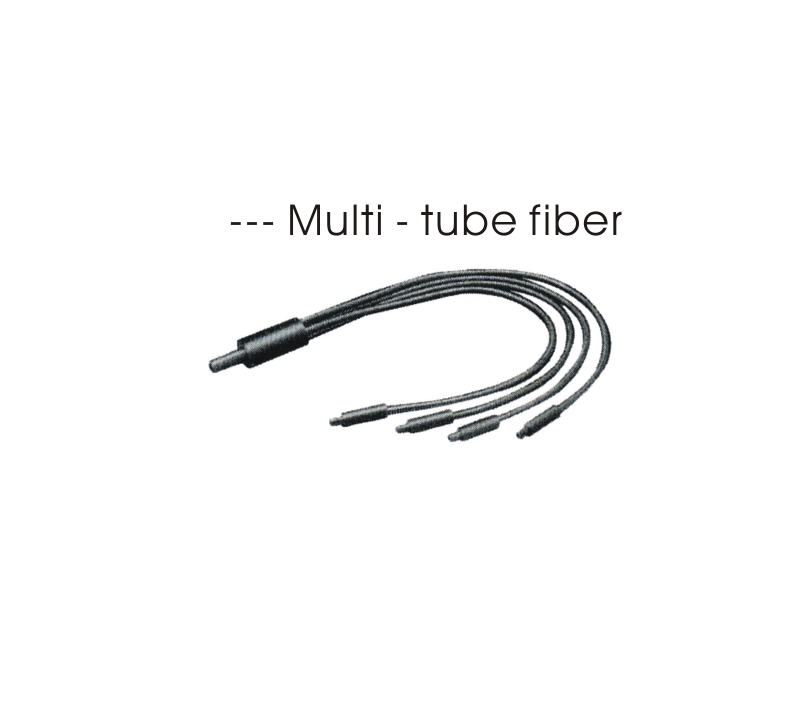

Error : Multi-divergence quartz fiber duct, a variety of
output intensity error guaranteed within 10%.
Use : Fluorescent light inspection, wafer, base plate,
metal parts ... and so on.
industry : Suitable for electronic components, optoelectronic
components, LCD glass,lens and other adhesive
and environmental protection and efficient.

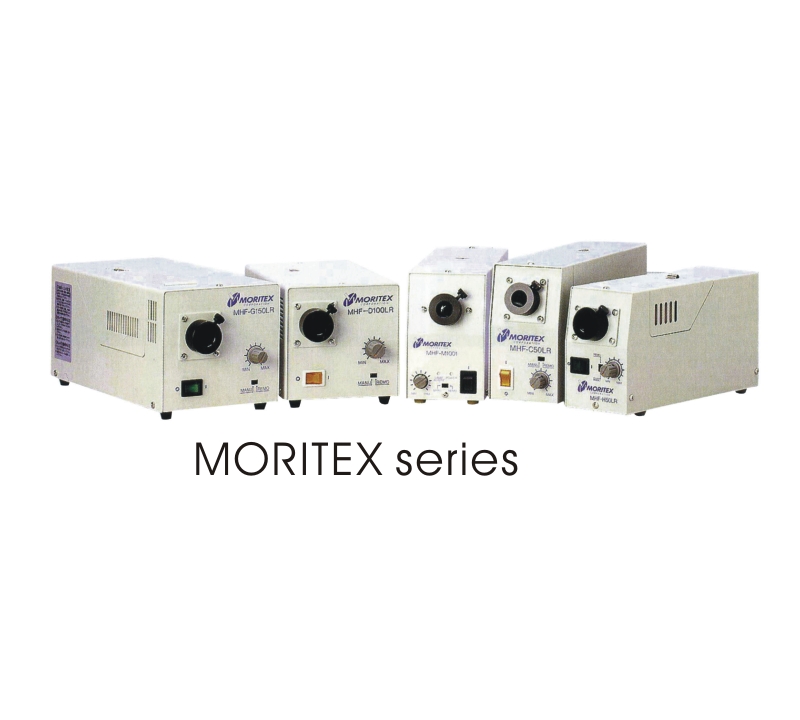

Halogen quartz light source ---
Fiber optic light source ( HALOGEN TYPE LIGHT SOURCE)
Features: The use of optical fiber light guide to the object,
can effectively reduce the object by the heat
source caused by distortion or deterioration,
resulting in anti-observed effect; another fiber
tube can be arbitrarily twisted to adjust to the
appropriate location or angle, in order to get
the best light source lighting.
