Instrument features
* Unilateral global --- 0.05 % (Optical multiple accuracy)
* Lens : Mining Germany ZEISS optical, high resolution, durable
* Linear accuracy : 3 um (X/Y) --- Original precision
* Linear optical ruler : Europe Acu-Rite
* Built-in reflector : Mining special alloy polishing does not
stripping
* Light source system : Electronic Touch System and Power
Saving Design
Data processing processor
Features :
〒 Standard optical scale immediate coordinate values.
〒 Projection screen Rotates the immediate angle value.
〒 Basic geometric measurement function :
Provide points, lines, circles, arcs, distance,
angle Axis correction function.
Geometric measurement software
〒 Complete geometric measurement, calculation software.
〒 Workpiece coordinates are free to rotate the pan setting.
〒 A large number of objects to be tested
〒 Easy to understand report output: word / e'xcel format output
Combination : The company looked up and measured the
results.
〒 The result data output can be designed with Auto-CAD /
* .dxf format.
〒 SPC Statistical Analysis;Rapid reporting output.
〒 Efficient electronics : Directly with the network immediately
transfer the
relevant departments,Management and
co-operation (OEM); timely to reach a paperless factory.
Models
|
350V
|
350H
|
400V
|
400H
|
|
Projection system
|
upright
|
Horizontal
|
upright
|
Horizontal
|
|
Projection screen diameter
|
350mm
|
400mm
|
|||
Digital display
|
0.001 mm (X / Y); 1 '(angle)
|
||||
Measurement range (mm)
|
200x100
|
200x150
|
200x100
|
200x150
|
|
Transmission mechanism
|
Switzerland ROSA AA level
|
||||
Projection lens
|
Germany ZEISS lens --- 10/20/50/100 times
|
||||
Light source system
|
12V / 100W adjustable angle fiber optic light source; 24V / 150W contour light source
|
||||
Surface light source
|
Mining fiber cold light source, with high light, white, low thermal characteristics
|
||||
Special filter
|
Eliminate optical interference with the best optical quality of halo
|
||||
Foldable lamppost
|
Convenient for large workpiece measurement (horizontal)
|
||||
Determine the platform rotation
|
|
± 15 degrees
|
|
± 15 degrees
|
|
power supply
|
110V or220V
|
||||

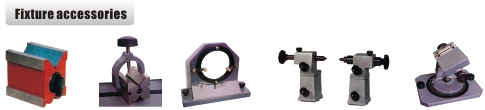

Extensibility
|
Geometric measurement software
|
